SUN HYDRAULICS
ZHJ

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

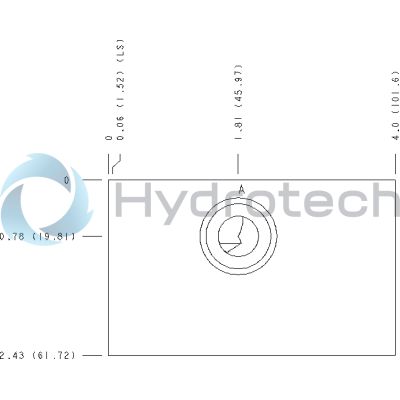

The Sun Hydraulics ZHJ (Material Number: ZHJ) is a robust and versatile hydraulic subplate designed to meet the demanding requirements of fluid power systems. This subplate features a body type that conforms to the ISO 05 XY US interface standard, ensuring compatibility with a wide range of hydraulic components. The design incorporates P to T side ports and accommodates four mounting holes with a diameter of 0.44 inches (11.1 mm), providing secure and stable installation options. The ZHJ model includes an open cavity type T10A and utilizes 3/4 NPTF port sizes, making it suitable for various hydraulic applications. The subplate is constructed from 6061-T651 aluminum, known for its excellent corrosion resistance and strength-to-weight ratio, making it an ideal choice for environments where durability is essential. With its ability to withstand pressures up to 3000 psi (210 bar), this manifold ensures reliable performance in high-pressure systems, provided that the system pressure does not exceed the material's limitations. The Sun Hydraulics ZHJ subplate is engineered without anodizing due to considerations such as cost, logistics, and fatigue life implications. This decision enhances its longevity by avoiding the potential initiation of fatigue cracks that anodizing could cause under pressurized conditions. This product is particularly suited for applications requiring efficient fluid control and distribution within hydraulic circuits while maintaining structural integrity over extended use periods.
