SUN HYDRAULICS
Z7X

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

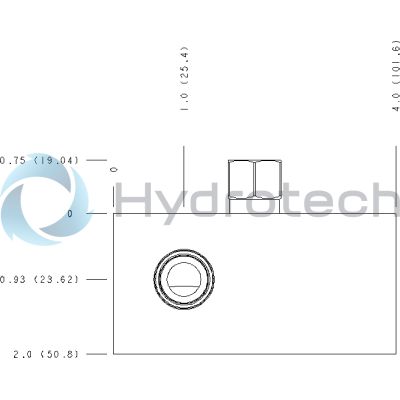

The Sun Hydraulics Z7X (Material Number: Z7X) is a versatile line mount manifold designed for efficient fluid control in hydraulic systems. This model features a cross-port with shuttle body type, providing seamless integration into various hydraulic applications. It accommodates two open cavities and utilizes the T10A cavity configuration, ensuring compatibility with specific cartridge valves. The manifold is equipped with 1/4 NPTF port sizes, facilitating easy connection to standard hydraulic fittings. Constructed from 6061T651 aluminum, the Sun Hydraulics Z7X offers excellent corrosion resistance while maintaining structural integrity under pressure conditions up to 3000 psi (210 bar). The use of this aluminum alloy balances strength and cost-effectiveness, making it suitable for diverse operational environments. The manifold's mounting hole diameter is .34 inches (8.6 mm), and it features through-hole depth with two mounting holes for secure attachment. The design of the Z7X does not include anodizing, as Sun Hydraulics prioritizes maintaining the natural corrosion-resistant properties of 6061T651 aluminum while avoiding potential drawbacks associated with anodizing, such as increased breakaway torque and reduced fatigue life. This focus ensures long-term durability and reliable performance in demanding hydraulic systems. Overall, the Sun Hydraulics Z7X manifold serves as an integral component in fluid power systems that require robust and efficient flow management solutions without compromising on material quality or system pressure capabilities.
