SUN HYDRAULICS
Z4Z

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

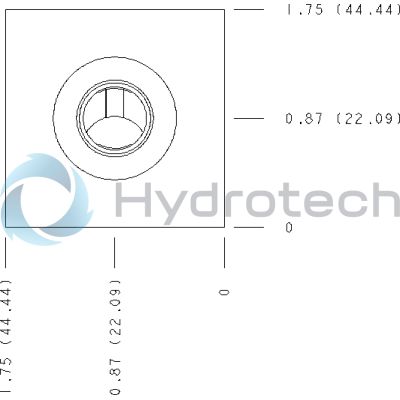

The Sun Hydraulics Z4Z (Material Number: Z4Z) is a line mount manifold designed for hydraulic systems, characterized by its robust construction and versatile application potential. This manifold features a through port 1 with a gauge port, providing efficient fluid flow management within hydraulic circuits. It is equipped with SAE 10 port sizes, ensuring compatibility with standard hydraulic fittings and facilitating easy integration into existing systems. The mounting hole thread measures .250-20 UNC 2B in., with a depth of .50 inches and includes two mounting holes for secure attachment. Additionally, it has one open cavity that fits the T-10A cavity type, expanding its adaptability to various cartridge valves. Constructed from 6061-T651 aluminum, this manifold offers excellent corrosion resistance without the need for anodizing, which Sun Hydraulics opts against due to cost and potential reduction in fatigue life. The material choice ensures durability while maintaining cost-effectiveness and ease of machining. With a pressure rating suitable for systems not exceeding 3000 psi (210 bar), the Z4Z is ideal for moderate pressure applications where reliability and performance are critical. This manifold's design makes it suitable for various hydraulic applications requiring efficient fluid control and distribution. Its straightforward installation process and compatibility with high-flow valves make it an asset in optimizing system performance. The Sun Hydraulics Z4Z is engineered to deliver dependable service in diverse operational environments, making it a valuable component in any hydraulic setup requiring precision and durability.
