SUN HYDRAULICS
YVW
$224.10 USD
Tags:
- SUN HYDRAULICS
- Material:YVW
- Summary:Manifold
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics YVW (Material Number: YVW) is a line mount manifold designed specifically for direct mounting with a cross pilot feature. This manifold is crafted to accommodate high flow valves and is constructed from 6061T651 aluminum, known for its strong corrosion resistance and durability. The body of the manifold features two open cavities with a T-2A cavity type, and it includes 22 mounting holes that are .42 inches in diameter and through-drilled for ease of installation. The mounting holes also have a counterbore diameter of .59 inches and a depth of .31 inches, ensuring secure attachment. The port size for this manifold is 12 NPTF, making it suitable for various hydraulic applications where standard port sizes are required. It is important to note that while the aluminum construction provides excellent corrosion resistance, the manifold should not be used in systems where pressures exceed 3000 psi (210 bar). This ensures safe operation and longevity of the component within hydraulic systems. Given its robust design and material choice, the Sun Hydraulics YVW manifold is well-suited for applications requiring reliable fluid control without the need for anodization, which could compromise fatigue life due to potential crack initiation under pressure. The absence of anodizing also simplifies inspection processes and reduces logistical concerns associated with additional manufacturing steps. Overall, this product offers a practical solution for integrating high-flow valves into hydraulic systems while maintaining durability and performance standards.
The Sun Hydraulics YVW (Material Number: YVW) is a line mount manifold designed specifically for direct mounting with a cross pilot feature. This manifold is crafted to accommodate high flow valves and is constructed from 6061T651 aluminum, known for its strong corrosion resistance and durability. The body of the manifold features two open cavities with a T-2A cavity type, and it includes 22 mounting holes that are .42 inches in diameter and through-drilled for ease of installation. The mounting holes also have a counterbore diameter of .59 inches and a depth of .31 inches, ensuring secure attachment. The port size for this manifold is 12 NPTF, making it suitable for various hydraulic applications where standard port sizes are required. It is important to note that while the aluminum construction provides excellent corrosion resistance, the manifold should not be used in systems where pressures exceed 3000 psi (210 bar). This ensures safe operation and longevity of the component within hydraulic systems. Given its robust design and material choice, the Sun Hydraulics YVW manifold is well-suited for applications requiring reliable fluid control without the need for anodization, which could compromise fatigue life due to potential crack initiation under pressure. The absence of anodizing also simplifies inspection processes and reduces logistical concerns associated with additional manufacturing steps. Overall, this product offers a practical solution for integrating high-flow valves into hydraulic systems while maintaining durability and performance standards.

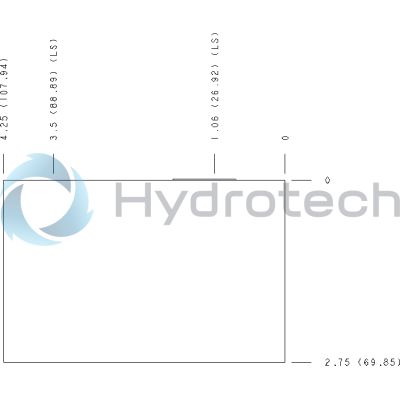

Body Type | Line mountLine mount |
Interface | SunSun |
Body Features | Direct mount, cross pilotDirect mount, cross pilot |
Mounting Hole Diameter | .42 in.10,7 mm |
Mounting Hole Depth | ThroughThrough |
Mounting Hole C'bore Diameter | .59 in.15,0 mm |
Mounting Hole C'bore Depth | .31 in.8 mm |
Mounting Hole Quantity | 22 |
Open Cavities | 22 |
Cavity | T-2A |
Port Size | 1/2" NPTF1/2" NPTF |
Show FAQ
Additional Resources
- Standard Line Mount Manifolds for High Flow Valves
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Manufacturing Sun Cartridge Cavities
- Sun Model Code Explanation; 999-901-334
- Custom Integrated Packages from Sun
- Fluid and Temperature Recommendations
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
- Manifolds: Materials of Construction
- Sun's Floating Style Screw-In Cartridge
Notes:
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
