SUN HYDRAULICS
YVQ

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

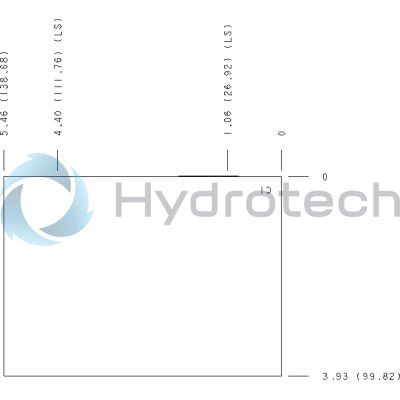

The Sun Hydraulics YVQ (Material Number: YVQ) is a versatile line mount hydraulic manifold designed for direct mounting with cross pilot capabilities. The manifold features a body type suitable for line mounting, with a T17A cavity and SAE 16 port size. It includes two open cavities and accommodates two mounting holes, each with a diameter of 0.53 inches (13.5 mm) and depth through the entire body. The mounting hole counterbore diameter is 0.78 inches (19.8 mm), with a counterbore depth of 0.44 inches in metric models (11.1 mm). This product is constructed from 6061T651 aluminum, known for its strength, cost-effectiveness, machinability, availability, and excellent corrosion resistance. The Sun Hydraulics YVQ manifold is engineered to handle hydraulic systems where direct mounting is required without the need for anodizing due to the inherent corrosion-resistant properties of its aluminum construction. However, it should be noted that manifolds made from aluminum are not rated for pressures exceeding 3000 psi (210 bar). This manifold serves as an integral component in hydraulic circuits by facilitating the routing of fluid between various components while maintaining system integrity under specified pressure conditions. This product's design ensures reliable performance in applications where efficient fluid control and distribution are critical. Its straightforward installation process and robust construction make it suitable for use in various hydraulic systems requiring line-mounted solutions with specific cavity configurations and port sizes.
