SUN HYDRAULICS
YRD
$914.40 USD
Tags:
- SUN HYDRAULICS
- Material:YRD
- Summary:Manifold
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

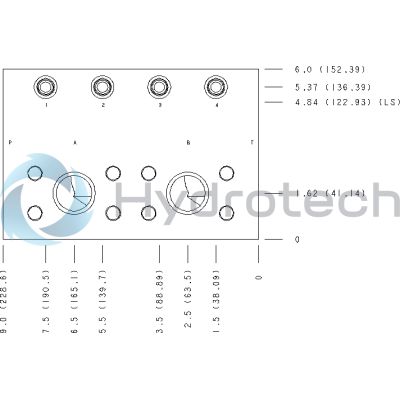

The Sun Hydraulics YRD (Material Number: YRD) is a line mount manifold designed for high-performance hydraulic systems. This model features a four-port directional circuit that utilizes logic valves, making it suitable for complex fluid control applications. The manifold incorporates SAE pilot ports and is equipped with M10x1.5 6H metric mounting holes, with a depth of 15.7 mm and a total of two mounting holes available. It includes open cavities configured to the T19A standard and supports port sizes of 1-1/2 Code 61. Constructed from 6061T651 aluminum, this manifold is highly resistant to corrosion, although it is not anodized to avoid issues such as increased breakaway torque and reduced fatigue life. The manifold's design ensures compatibility with high-flow valves, making it ideal for use in demanding hydraulic environments where reliability and performance are critical. It is important to note that aluminum manifolds like this one are not rated for pressures exceeding 3000 psi (210 bar), so careful consideration of system pressure is essential when integrating this component into your hydraulic setup.
The Sun Hydraulics YRD (Material Number: YRD) is a line mount manifold designed for high-performance hydraulic systems. This model features a four-port directional circuit that utilizes logic valves, making it suitable for complex fluid control applications. The manifold incorporates SAE pilot ports and is equipped with M10x1.5 6H metric mounting holes, with a depth of 15.7 mm and a total of two mounting holes available. It includes open cavities configured to the T19A standard and supports port sizes of 1-1/2 Code 61. Constructed from 6061T651 aluminum, this manifold is highly resistant to corrosion, although it is not anodized to avoid issues such as increased breakaway torque and reduced fatigue life. The manifold's design ensures compatibility with high-flow valves, making it ideal for use in demanding hydraulic environments where reliability and performance are critical. It is important to note that aluminum manifolds like this one are not rated for pressures exceeding 3000 psi (210 bar), so careful consideration of system pressure is essential when integrating this component into your hydraulic setup.
| Body Type | Line mountLine mount |
| Interface | NoneNone |
| Body Features | Four port directional circuit using logic valves, SAE pilot portsFour port directional circuit using logic valves, SAE pilot ports |
| Mounting Hole Thread | M10x1.5 - 6H (metric models)M10x1.5 - 6H (metric models) |
| Mounting Hole Depth | .62 in.15,7 mm |
| Mounting Hole Quantity | 22 |
| Open Cavities | 44 |
| Cavity | T-19A |
| Port Size | 1 1/2" Code 611 1/2" Code 61 |
Show FAQ
Additional Resources
- Standard Line Mount Manifolds for High Flow Valves
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Manufacturing Sun Cartridge Cavities
- Sun's Floating Style Screw-In Cartridge
- Sun Model Code Explanation; 999-901-334
- Custom Integrated Packages from Sun
- Fluid and Temperature Recommendations
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
- Manifolds: Materials of Construction
Notes:
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
