SUN HYDRAULICS
XWY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

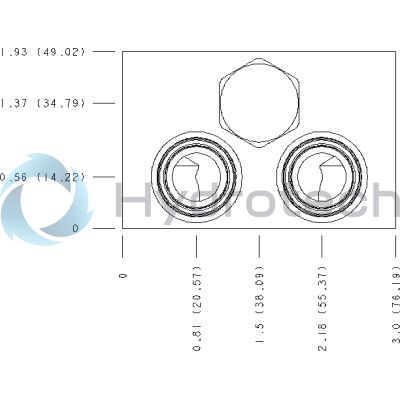

The Sun Hydraulics XWY (Material Number: XWY) is a motor mount manifold designed to facilitate control and protection of hydraulic motors. It features a motor mount interface compatible with Eaton CharLynn H and S series motors, ensuring versatile application in hydraulic systems. The body is constructed from 6061T651 aluminum, known for its strength, affordability, and excellent corrosion resistance, making it suitable for various environments. This manifold includes meter-out capabilities for both A and B ports with an integrated shuttle valve system, optimizing fluid control in hydraulic circuits. It has two open cavities designed to accommodate Sun cartridge valves with a 22Cavity T-13A interface. The port size is standardized at 12 BSPP, providing compatibility with common hydraulic fittings and ensuring ease of integration into existing systems. Notably, the product does not undergo anodization due to considerations regarding cost, logistics, consistency, inspection challenges, torque increase during disassembly, and potential reductions in fatigue life associated with anodized surfaces. As such, the manifold maintains its natural aluminum finish. For applications involving CharLynn S series motors specifically, a riser gage port adapter is required to ensure proper functionality; compatible models include Sun's ZVQ NPT, WPA SAE, and WPB BSPP adapters. Users must consider the maximum system pressure when implementing this manifold; it is rated for pressures up to 3000 psi (210 bar) due to the inherent limitations of aluminum material used in its construction. This product offers robust performance within these parameters for efficient hydraulic motor management.
