SUN HYDRAULICS
XRDCLNNHL


$321.70 USD

Tags:

  • SUN HYDRAULICS
  • Material:XRDCLNNHL
  • Model:XRDC-LNN-HL
  • Summary:Y-assembly

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

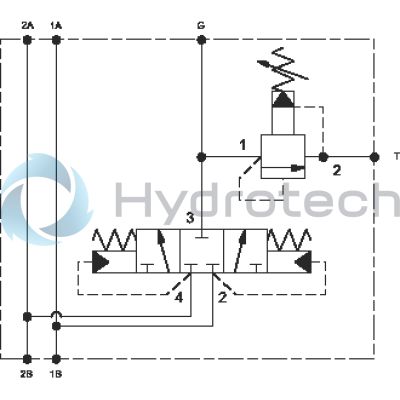

The Sun Hydraulics XRDCLNNHL (Material Number: XRDCLNNHL) is a valve assembly designed to provide a flushing circuit for hydrostatic transmissions. This component facilitates the discharge of oil from the low-pressure side of the loop, with the charge pump replacing hot, dirty oil with cooler, filtered oil. The hot oil discharge can pass through the cases of both the pump and motor, effectively flushing out unwanted contaminants. A notable feature of this assembly is its hot oil shuttle, which allows for setting confirmation or adjustment of the hot oil relief when the transmission is in neutral. This design includes common ports marked as 1 and 2, enabling it to be teed off rather than directly plumbed into the loop. The system operates such that when in neutral, charge pressure is managed by the charge pump relief, and upon activation of the hot oil shuttle, some or all charge pump flow redirects to the hot oil relief. To ensure effective operation, it\u2019s crucial that the charge pump relief is set higher than the hot oil relief. The differential pressure between these two reliefs dictates hot oil flow levels. While quantifying this flow can be challenging due to varying pressure versus flow curves of each relief, standard settings for hot oil relief are established at 200 psi (14 bar) at a flow rate of 4 gpm (16 L/min). With a capacity of 10 gpm (40 L/min), this line-mount type valve assembly requires four mounting holes for installation. Additionally, due to potential hydraulic motor leaks within hydrostatic systems, incorporating a mechanical brake is advised to securely lock any stopped live load.

This valve assembly provides a flushing circuit for hydrostatic transmissions. The hot oil flushing circuit allows a discharge of oil from the low pressure side of the loop. The charge pump replaces the hot, dirty oil with cool, filtered oil. The hot oil discharge is often passed through the cases of the pump and the motor, flushing hot, dirty oil from them as well.

  • A unique feature of the hot oil shuttle is that the setting of the hot oil relief can be confirmed or adjusted when the transmission is in neutral.
  • The two ports marked 1 are common as are the two marked 2. Therefore the assembly can be teed off the loop rather than being plumbed into the loop.
  • The two ports marked 1 are common as are the two marked 2. The high pressure relief that is physically on the same side as port 1 controls the pressure on port 2 and vice versa.
  • When the transmission is in neutral the charge pressure is controlled by the charge pump relief. When the hot oil shuttle opens, some or all of the charge pump flow is redirected to the hot oil relief. The charge pump relief must be set higher than the hot oil relief to produce hot oil flow. The higher the differential pressure between the 2 reliefs, the higher the hot oil flow. The amount of hot oil flow is determined by the pressure vrs flow curves of the 2 reliefs and is difficult to quantify.
  • The standard setting of the hot oil relief is 200 psi (14 bar) at a flow of 4 gpm (16 L/min).
  • Hydraulic motors leak. Therefore a mechanical brake is recommended to positively lock any stopped live load.

Capacity10 gpm40 L/min.
Body TypeLine mountLine mount
Mounting Hole Quantity44

Show FAQ

Additional Resources



Notes:
  • Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
