Model:XQCG-LAN-AK
Summary:Y-assembly

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics XQCGLANAK (Material Number: XQCGLANAK) is a versatile valve assembly designed to efficiently manage the charging and unloading of an accumulator using a fixed displacement pump. This assembly automatically unloads the pump when the pressure reaches a set point and re-engages it when pressure drops to a predetermined level. It features a ventable relief valve that acts both as a main stage for unloading the pump and as an overpressure relief system. The assembly includes mechanisms to soften pump unloading and to dump the accumulator when the pump is powered down, enhancing operational smoothness and safety. For optimal performance, this assembly requires a separate drain line to mitigate erratic operations caused by tank line pressure fluctuations. The design emphasizes careful selection of adjustment ranges due to potential impacts from system pressure drops and flow rates on unloading valve operations. With its large porting relative to capacity, this assembly encourages the use of large piping, minimizing flow-induced pressure drop issues. The pilot valve's spool design ensures consistent differential ratios by utilizing diameters on the spool that resist wear over time. Importantly, the accumulator pilot valve must be set below any system reliefs on the pump side to prevent excessive heating. This package\u2019s relief component serves strictly as an overpressure device, preset higher than any pilot valve settings. With a capacity of 10 gpm (40 L/min), this line-mount body type assembly requires two mounting holes with specified dimensions for secure installation. It is crucial that users consider maximum system pressures, especially with aluminum manifolds not rated for pressures exceeding 3000 psi (210 bar).

Description

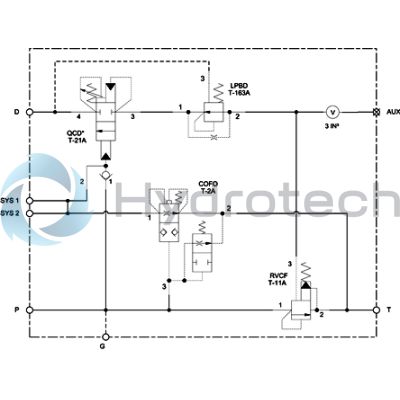

This valve assembly is meant to charge an accumulator using a fixed displacement pump. When the pressure reaches the set point of the valve, the pump is unloaded. When the pressure drops to the value determined by the fixed percentage of the pilot valve, the pump is brought back on line to recharge the accumulator. The ventable relief serves a dual purpose as a main stage to unload the pump and as a system over-pressure relief. The assembly has two additional features; a simple circuit that softens the unloading of the pump and a valve that dumps the accumulator when the pump is powered down.

When applying this assembly, a separate drain line is required to prevent erratic operation caused by tank line pressure fluctuations.
NOTE: Careful consideration should be given when selecting an adjustment range. System pressure drops and flows tend to affect the operation of unloading valves. Low operating pressures combined with low differentials result in a very narrow band between unload and reset, requiring precise system design. High flow rates typically mean high pressure drops, which subtract from the differential the valve has to work with.
The pressure setting and the resultant reseat pressure are in reference to the port 2 area of the QCD* pilot valve. Pump pressure will be higher and accumulator pressure will be lower due to pressure drop caused by flow.
The porting on this assembly is large in relation to its capacity. This is done to encourage the use of correspondingly large piping to minimize problems caused by flow induced pressure drop.
The spool design of the pilot valve allows it to maintain a fixed differential ratio because the areas are created by diameters on the spool that will not wear or change with use.
The accumulator pilot valve must be set below any reliefs in the pump side of the system or severe heating could occur.
The relief in this package is meant to be an over-pressure device. It is set higher than the highest setting of the pilot valve and capped.

Capacity	10 gpm40 L/min.
Body Type	Line mountLine mount
Mounting Hole Diameter	.41 in.10,4 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
