SUN HYDRAULICS
CAVITY PLUG
XICAXXN
$78.50
- SUN HYDRAULICS
- Material:XICAXXN
- Model:XICA-XXN
- Summary:Cartridge
Quantity in stock: 6

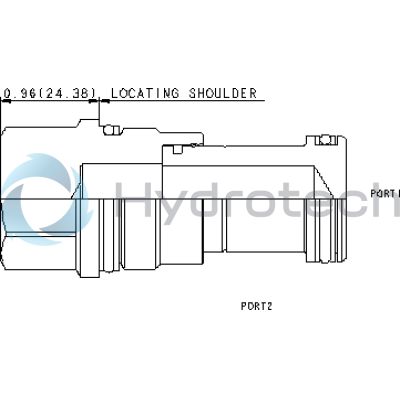

This cavity plug blocks all ports.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cavity plugs are intended for use in corrosive environments and are identified by the model code suffix /AP (see Option Selection below). The bodies of these plugs are made from high strength lean duplex stainless steel. Internal parts are made from carbon steel leaded alloy, the same as standard plugs.
Cavity | T-16A |
Series | 3 |
Maximum Operating Pressure | 5000 psi350 bar |
Port Configuration | 2 Port2 Port |
Valve Hex Size | 1 1/4 in.31,8 mm |
Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
Seal kit - Cartridge | Viton: 990-016-006 |
