SUN HYDRAULICS
XFCAXXN
$30.00 USD
Tags:
- SUN HYDRAULICS
- Material:XFCAXXN
- Model:XFCA-XXN
- Summary:Cartridge
Quantity in stock: 6
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics XFCAXXN (XFCAXXN) is a corrosion-resistant cavity plug designed to block all ports effectively. This plug is particularly suited for use in corrosive environments, thanks to its construction from high-strength lean duplex stainless steel for the body and carbon steel leaded alloy for the internal components. The XFCAXXN is built to fit a T-10A series 1 cavity and can withstand a maximum operating pressure of 5000 psi (350 bar). It features a 2-port configuration and requires an installation torque between 30 and 35 lbf-ft (41 and 47 Nm) with a valve hex size of 7/8 inches (22.2 mm). For sealing, it utilizes Viton cartridges with the seal kit number 990010006. The robust design ensures durability and reliability in demanding conditions, making it an ideal choice for applications requiring high corrosion resistance without compromising performance.
The Sun Hydraulics XFCAXXN (XFCAXXN) is a corrosion-resistant cavity plug designed to block all ports effectively. This plug is particularly suited for use in corrosive environments, thanks to its construction from high-strength lean duplex stainless steel for the body and carbon steel leaded alloy for the internal components. The XFCAXXN is built to fit a T-10A series 1 cavity and can withstand a maximum operating pressure of 5000 psi (350 bar). It features a 2-port configuration and requires an installation torque between 30 and 35 lbf-ft (41 and 47 Nm) with a valve hex size of 7/8 inches (22.2 mm). For sealing, it utilizes Viton cartridges with the seal kit number 990010006. The robust design ensures durability and reliability in demanding conditions, making it an ideal choice for applications requiring high corrosion resistance without compromising performance.

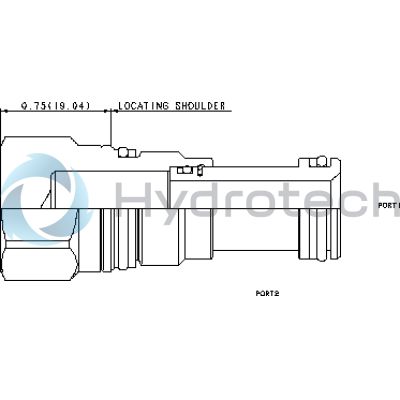

This cavity plug blocks all ports.
- Corrosion resistant cavity plugs are intended for use in corrosive environments and are identified by the model code suffix /AP (see Option Selection below). The bodies of these plugs are made from high strength lean duplex stainless steel. Internal parts are made from carbon steel leaded alloy, the same as standard plugs.
| Cavity | T-10A |
| Series | 1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Port Configuration | 2 Port2 Port |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
