SUN HYDRAULICS
X5Z
$117.70 USD
Tags:
- SUN HYDRAULICS
- Material:X5Z
- Summary:Manifold
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

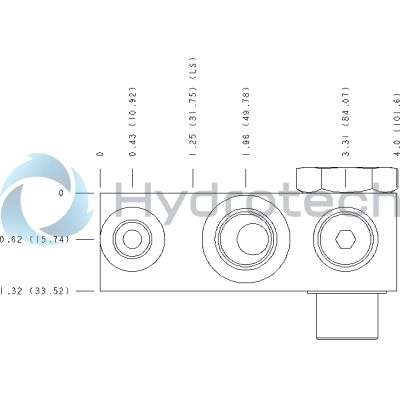

The Sun Hydraulics X5Z (Material Number: X5Z) is a line mount manifold specifically designed for hydraulic systems requiring a banjo bolt interface. This component features a through port 2 with an additional gauge port, providing flexibility for system monitoring and maintenance. The banjo bolt installation requires a torque between 90 lb. ft. to 99 lb. ft. (120 Nm to 132 Nm), ensuring secure and reliable connections within the system. The hex size of the banjo bolt is 1.18 inches, contributing to its robust design. The manifold accommodates one open cavity, identified as T-21A, and includes a port size of 12 BSPP, which is standard for various hydraulic applications. Constructed from 6061-T651 aluminum, this manifold offers excellent corrosion resistance and durability, making it suitable for environments where these properties are critical. Despite its strength, the manifold is not anodized due to considerations regarding cost, logistics, consistency in production, inspection challenges, increased torque during disassembly, and potential reductions in fatigue life. This product is ideal for use in hydraulic systems where space constraints necessitate compact component designs without sacrificing performance or reliability. The inclusion of a gauge port allows for real-time pressure monitoring and adjustments as needed within the system's operation parameters. With a maximum pressure rating of up to 3000 psi (210 bar), this manifold meets the demands of many modern hydraulic applications while maintaining structural integrity under specified conditions. Overall, the Sun Hydraulics X5Z serves as an essential component in hydraulic setups requiring reliable line mounting solutions with integrated monitoring capabilities through its gauge port feature.
The Sun Hydraulics X5Z (Material Number: X5Z) is a line mount manifold specifically designed for hydraulic systems requiring a banjo bolt interface. This component features a through port 2 with an additional gauge port, providing flexibility for system monitoring and maintenance. The banjo bolt installation requires a torque between 90 lb. ft. to 99 lb. ft. (120 Nm to 132 Nm), ensuring secure and reliable connections within the system. The hex size of the banjo bolt is 1.18 inches, contributing to its robust design. The manifold accommodates one open cavity, identified as T-21A, and includes a port size of 12 BSPP, which is standard for various hydraulic applications. Constructed from 6061-T651 aluminum, this manifold offers excellent corrosion resistance and durability, making it suitable for environments where these properties are critical. Despite its strength, the manifold is not anodized due to considerations regarding cost, logistics, consistency in production, inspection challenges, increased torque during disassembly, and potential reductions in fatigue life. This product is ideal for use in hydraulic systems where space constraints necessitate compact component designs without sacrificing performance or reliability. The inclusion of a gauge port allows for real-time pressure monitoring and adjustments as needed within the system's operation parameters. With a maximum pressure rating of up to 3000 psi (210 bar), this manifold meets the demands of many modern hydraulic applications while maintaining structural integrity under specified conditions. Overall, the Sun Hydraulics X5Z serves as an essential component in hydraulic setups requiring reliable line mounting solutions with integrated monitoring capabilities through its gauge port feature.
| Body Type | Line mountLine mount |
| Interface | Banjo BoltBanjo Bolt |
| Body Features | Through port 2 with gauge portThrough port 2 with gauge port |
| Banjo Bolt Installation Torque | 90 lb. ft. to 99 lb. ft. (120 Nm to 132 Nm)90 lb. ft. to 99 lb. ft. (120 Nm to 132 Nm) |
| Banjo Bolt Hex | 1.181.18 |
| Open Cavities | 11 |
| Cavity | T-21A |
| Port Size | 1/2" BSPP1/2" BSPP |
Show FAQ
Additional Resources
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Standard Line Mount Manifolds for High Flow Valves
- Manufacturing Sun Cartridge Cavities
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
- Manifolds: Materials of Construction
- Sun's Floating Style Screw-In Cartridge
- Sun Model Code Explanation; 999-901-334
- Custom Integrated Packages from Sun
- Fluid and Temperature Recommendations
Notes:
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
