SUN HYDRAULICS
X3DDLANXA

$416.40 USD

Tags:

SUN HYDRAULICS
Material:X3DDLANXA
Model:X3DD-LAN-XA
Summary:Y-assembly

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics X3DDLANXA (Material Number: X3DDLANXA) is a versatile hydraulic assembly designed for precise flow regulation in both meter-in and meter-out applications. This product is equipped with a fully adjustable, pressure-compensated flow control and a reverse flow check valve, ensuring consistent performance even amidst wide pressure fluctuations. The assembly features an integral high-capacity check valve that allows for unrestricted reverse flow, while the sharp-edged orifice design minimizes variations due to viscosity changes. It also includes a solenoid-operated two-way, two-position valve that facilitates rapid or feed rate selection. The X3DDLANXA model is infinitely adjustable from nearly closed to the maximum flow capacity of 30 gallons per minute (120 liters per minute). Its balanced adjustment mechanism ensures easy adjustments even at high pressures. This product is constructed as a sandwich-type body with an ISO 05 interface and has a stack height of 2.49 inches (63 mm). The assembly includes a seal plate and is designed for use in systems where the manifold material can withstand pressures up to 3000 psi (210 bar). This hydraulic assembly is suitable for use in applications requiring precise control over fluid flow rates, making it ideal for environments with varying pressure conditions. Its robust design and ease of adjustment make it a reliable choice for maintaining optimal system performance.

Description

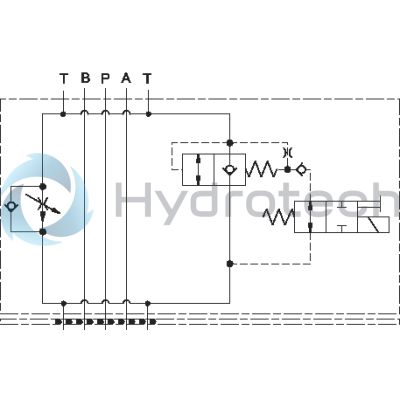

This assembly consists of a fully-adjustable, pressure-compensated flow control with reverse-flow check which provides precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. It is infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow in the reverse direction. The rapid or feed rate is selected by a solenoid operated (normally open or closed) 2-way, 2-position valve.

The sharp-edged orifice design minimizes flow variations due to viscosity changes.
A balanced adjustment mechanism allows for easy adjustment even at high pressures.

Capacity	30 gpm120 L/min.
Body Type	SandwichSandwich
Interface	ISO 05ISO 05
Body Features	Meter out TMeter out T
Stack Height	2.49 in.63 mm
Seal Plate Included (see notes)	YesYes

Show FAQ

Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
