SUN HYDRAULICS
X2DDLANXA

$406.60 USD

Tags:

SUN HYDRAULICS
Material:X2DDLANXA
Model:X2DD-LAN-XA
Summary:Y-assembly

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics X2DDLANXA (Material Number: X2DDLANXA) is a versatile hydraulic assembly designed for precise flow regulation in applications experiencing wide pressure fluctuations. This unit features a fully adjustable, pressure-compensated flow control with a reverse-flow check valve, allowing for accurate meter-in or meter-out applications. Its design includes an integral high-capacity check valve that ensures unrestricted flow in the reverse direction, and a solenoid-operated two-way, two-position valve to select rapid or feed rates. The sharp-edged orifice design minimizes flow variations due to viscosity changes, while the balanced adjustment mechanism ensures easy adjustments even at high pressures. The assembly incorporates Sun's floating style construction to reduce the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. With a capacity of 30 gpm (120 L/min), this product is built with a sandwich body type and conforms to ISO 05 interface standards. It features a stack height of 2.44 inches (62 mm) and does not include a seal plate. The X2DDLANXA is ideally suited for environments requiring durable and reliable flow control solutions without anodized aluminum bodies, as it uses 6061-T651 aluminum known for its corrosion resistance. This assembly is particularly useful where consistent performance in varying conditions is critical, offering robust capabilities tailored for demanding hydraulic systems.

Description

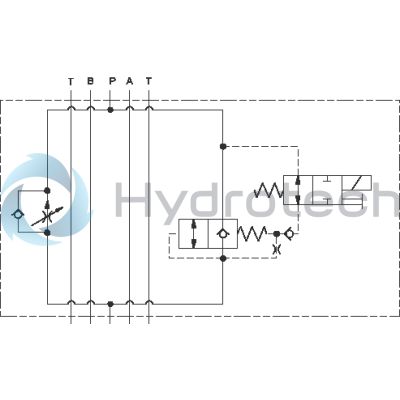

This assembly consists of a fully-adjustable, pressure-compensated flow control with reverse-flow check which provides precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. It is infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow in the reverse direction. The rapid or feed rate is selected by a solenoid operated (normally open or closed) 2-way, 2-position valve.

The sharp-edged orifice design minimizes flow variations due to viscosity changes.
A balanced adjustment mechanism allows for easy adjustment even at high pressures.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Capacity	30 gpm120 L/min.
Body Type	SandwichSandwich
Interface	ISO 05ISO 05
Body Features	Meter in PMeter in P
Stack Height	2.44 in.62 mm
Seal Plate Included (see notes)	NoNo

Show FAQ

Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
