SUN HYDRAULICS
WAM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

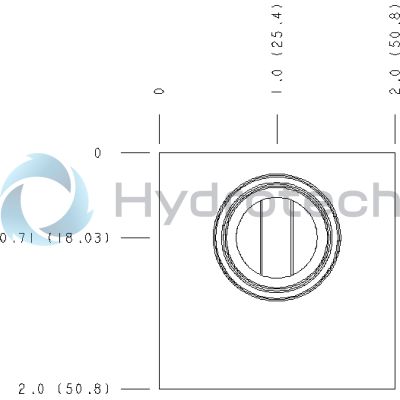

The Sun Hydraulics WAM (Material Number: WAM) is a line mount hydraulic manifold designed for versatile and efficient hydraulic system integration. This manifold features a through port body type, accommodating high flow requirements in hydraulic circuits. It is engineered with a mounting hole thread of M6x1.0 6H, a depth of .50 inches (12.7 mm), and includes 22 mounting holes, ensuring secure and stable installation. The manifold incorporates one open cavity with a T-3A cavity type, offering compatibility with various cartridge valves to enhance system functionality. The port size is configured to 3/4 BSPP, facilitating optimal fluid transfer in hydraulic applications. Constructed from 6061-T651 aluminum, the WAM manifold offers excellent corrosion resistance and durability without the need for anodizing, maintaining structural integrity even in demanding environments. This material choice ensures that the manifold remains relatively strong while being cost-effective and readily available in diverse shapes and sizes. However, it is important to note that manifolds made from aluminum are not rated for pressures exceeding 3000 psi (210 bar), regardless of the port type or size specified. The Sun Hydraulics WAM manifold serves as a crucial component in hydraulic systems where high flow and reliable performance are essential. Its design allows for seamless integration into existing systems, providing flexibility and adaptability across various applications that require precise control of hydraulic fluid flow.
