SUN HYDRAULICS
W9H

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

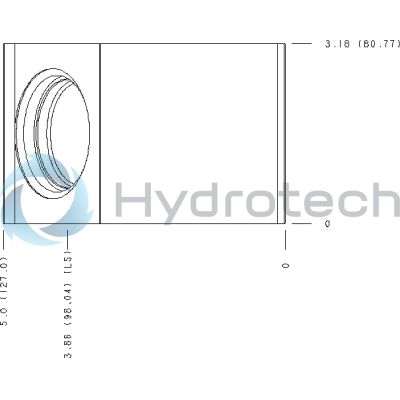

The Sun Hydraulics W9H (Material Number: W9H) is an inline body type line mount manifold designed for high flow hydraulic systems. It features a 1.25 SAE C61 metric interface and accommodates a T18A cavity with 11 open cavities, providing versatile application potential in hydraulic systems. The manifold is constructed from 6061T651 aluminum, known for its excellent corrosion resistance and strength, making it suitable for various environmental conditions. With a mounting hole diameter of .53 inches (13.5 mm) and depth through the body, it ensures secure installation with 11 mounting holes available. The port size is specified as 1 14 Code 61, which aligns with the standard requirements for robust hydraulic applications. This manifold is engineered to withstand pressures up to 3000 psi (210 bar), given its aluminum construction, which must be carefully considered in system design to avoid exceeding these limits. The manifold does not undergo anodizing due to factors such as cost, logistics, and the potential impact on fatigue life; instead, it relies on the inherent properties of the aluminum alloy used. This design choice enhances durability without compromising performance under typical operating conditions. The W9H model serves as a critical component in hydraulic systems requiring efficient fluid control and distribution, supporting various configurations through its open cavity design and standard port sizing. It is particularly suited for applications where high flow rates are necessary, ensuring reliable operation within specified pressure constraints while maintaining structural integrity over time.
