SUN HYDRAULICS
VWQ

$92.60 USD

Tags:

SUN HYDRAULICS
Material:VWQ
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

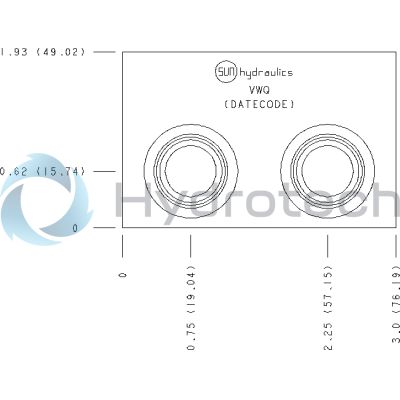

The Sun Hydraulics VWQ (Material Number: VWQ) is a line mount manifold designed for hydraulic systems. This manifold features a cross pilot configuration at a ninety-degree angle, providing efficient flow management in complex hydraulic circuits. It includes two open cavities compatible with T11A cartridges, allowing for versatile customization based on specific application needs. The manifold is constructed with 6061-T651 aluminum, known for its robustness and exceptional corrosion resistance, making it suitable for various environmental conditions without the need for anodizing. The body of the manifold is equipped with two mounting holes, each with a diameter of .34 inches (8.6 mm), facilitating secure installation in diverse setups. These holes are through-type, ensuring straightforward assembly and maintenance. The VWQ model supports SAE 8 port sizes, which are standard in many hydraulic applications, ensuring compatibility with existing systems and components. Its design prioritizes durability and performance while maintaining ease of integration into existing hydraulic circuits. The absence of anodizing reduces potential issues related to fatigue life and torque during maintenance operations, enhancing the longevity and reliability of the manifold in high-pressure environments up to 3000 psi (210 bar). This product is ideal for use in applications where efficient fluid control and system flexibility are crucial, offering a reliable solution for complex hydraulic challenges.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Cross pilot, ninety degreeCross pilot, ninety degree
Mounting Hole Diameter	.34 in.8.6 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	22
Cavity	T-11A
Port Size	SAE 8SAE 8

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
