SUN HYDRAULICS
VFZ

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

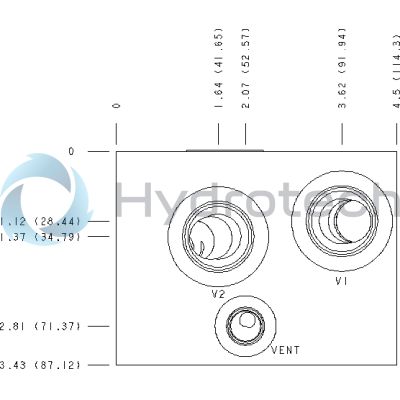

The Sun Hydraulics VFZ (Material Number: VFZ) is a precision-engineered hydraulic manifold designed for gasket mounting. This model features a direct mount with cross pilot capabilities, making it suitable for complex hydraulic systems requiring reliable and efficient fluid control. The manifold is crafted from 6061T651 aluminum, known for its excellent corrosion resistance and strength, ensuring durability in various environments. It includes two open cavities and accommodates a T-23A cavity type, enhancing its versatility in hydraulic applications. The mounting specifications are precise, with a hole diameter of 0.53 inches (13.5 mm) and a depth that allows for through-mounting, complemented by a counterbore diameter of 0.78 inches (19.8 mm) and depth of 0.47 inches (12 mm). With 22 mounting holes available, the VFZ model facilitates secure installation in diverse setups. The manifold's design does not require anodizing due to the inherent corrosion resistance of the aluminum used, which also contributes to maintaining its structural integrity over time by avoiding fatigue issues associated with anodized surfaces. This makes it an ideal choice for systems operating at pressures up to 3000 psi (210 bar), provided the port size considerations align with these specifications. Overall, the Sun Hydraulics VFZ manifold is tailored for applications demanding high performance and reliability in hydraulic systems, offering robust construction and flexible integration options within various setups while ensuring long-lasting service life without compromising on safety or efficiency.
