SUN HYDRAULICS
U9P

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

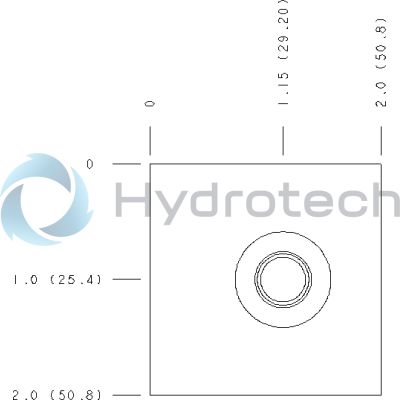

The Sun Hydraulics U9P (Material Number: U9P) is a robust manifold designed for use with solenoid-operated and electroproportional cartridges. It features additional material around the cavity to provide necessary coil clearance, along with the spotface required for Sun's weatherized coil. This line mount body type supports a ninety-degree interface, compatible with standard and weatherized coils. It includes eleven mounting holes with a diameter of 0.34 inches (8.6 mm) that penetrate through the manifold body, accommodating various installation requirements. The manifold has open cavities designed to fit T-13A cartridges and features SAE 4 port sizes for efficient hydraulic fluid management. Constructed from 6061T651 aluminum, the U9P manifold offers excellent corrosion resistance without the need for anodizing, which can compromise fatigue life due to its brittle surface characteristics. This material choice ensures durability even in challenging environments while maintaining cost-effectiveness and machinability. It's important to note that aluminum manifolds like this one are not rated for pressures exceeding 3000 psi (210 bar), regardless of port size specifications. This manifold is particularly suited for applications requiring reliable hydraulic fluid control in systems utilizing high-flow valves or custom integrated packages. Its design allows for seamless integration into various hydraulic systems, providing versatility and adaptability to meet specific application needs.
