SUN HYDRAULICS
U9L

$33.40 USD

Tags:

SUN HYDRAULICS
Material:U9L
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

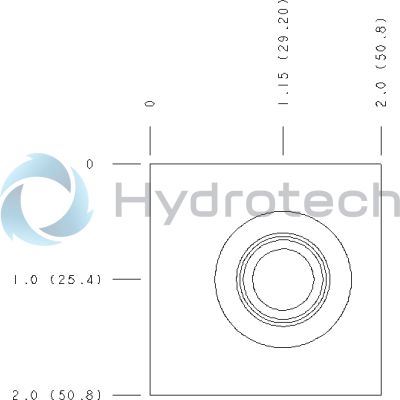

The Sun Hydraulics U9L (Material Number: U9L) is a line mount manifold specifically engineered for use with solenoid-operated and electroproportional cartridges. This manifold features extra material around the cavity to accommodate coil clearance and includes the necessary spotface for Sun's weatherized coil. It is designed with a ninety-degree body type that accepts both standard and weatherized coils, providing versatility in various hydraulic applications. The manifold boasts a mounting hole diameter of 0.34 inches (8.6 mm) and allows for through-hole mounting with a total of eleven mounting holes available. It has eleven open cavities and utilizes the T-13A cavity type, while the port size is SAE 8, ensuring compatibility with common hydraulic systems. Constructed from 6061-T651 aluminum, this manifold offers a balance of strength, cost-effectiveness, and corrosion resistance without requiring anodization, which can increase costs and reduce fatigue life. The material selection ensures durability in demanding environments while maintaining ease of machining. This makes it suitable for applications where weight considerations are crucial without compromising structural integrity or performance. The U9L manifold is not rated for pressures exceeding 3000 psi (210 bar), emphasizing the importance of considering maximum system pressure during design to ensure safety and reliability in operation. Its innovative design supports high-flow valves, making it an integral component in hydraulic systems requiring efficient fluid control and management.

Description

This manifold is designed to be used with solenoid operated and electro-proportional cartridges. It incorporates extra material around the cavity to provide coil clearance along with the spotface needed for Sun's weatherized coil.

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Ninety degree, accepts standard and weatherized coilsNinety degree, accepts standard and weatherized coils
Mounting Hole Diameter	.34 in.8.6 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	11
Open Cavities	11
Cavity	T-13A
Port Size	SAE 8SAE 8

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
