SUN HYDRAULICS
SXEALCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

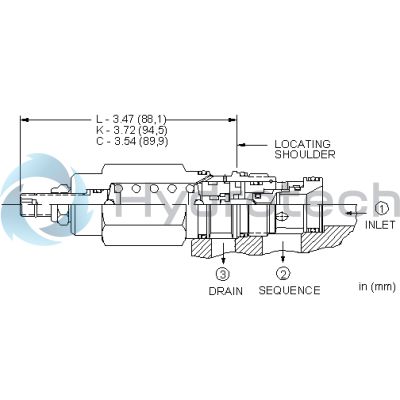

The Sun Hydraulics SXEALCV (SXEALCV) is a direct-acting sequence valve designed to manage the flow to a secondary circuit once the pressure at the inlet port 1 surpasses the set threshold. This valve ensures precise control of pressure at port 1 relative to the drain port 3, with all three-port sequence cartridges being interchangeable in terms of flow path and cavity for a given frame size. The SXEALCV features zero pilot flow, but requires port 3 to be connected for maintaining a pressure reference in the control chamber; blocking this port can lead to malfunction due to seal weepage. The valve setting pressure is directly influenced by the pressure at port 3, with an additive effect at a 1:1 ratio, not exceeding 5000 psi (350 bar). It is particularly suitable for load-holding applications and incorporates Sun's floating style construction, which minimizes internal part binding due to excessive installation torque or machining variations. The SXEALCV has a capacity of up to 30 gpm (120 L/min) and operates under a maximum pressure of 5000 psi (350 bar). Its typical response time is approximately 2 ms, with maximum valve leakage at reseat being limited to 10 drops/min (0.7 cc/min). The valve's adjustment can be increased with four clockwise turns, and it features specific installation torque requirements: valve hex size is 1-1/8 in. (28.6 mm), requiring torque between 45-50 lbf ft (61-68 Nm), while locknut hex size is 9/16 in. (15 mm), requiring torque between 80-90 lbf in. (9-10 Nm). The model weighs approximately .60 lb (.30 kg) and utilizes Viton seals as part of its construction for enhanced durability and performance reliability.
