SUN HYDRAULICS
SXCBKDV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

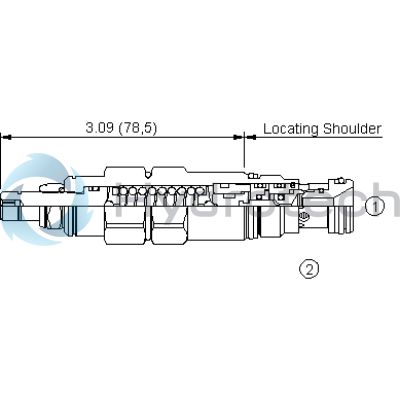

The Sun Hydraulics SXCBKDV (SXCBKDV) is an atmospherically referenced, direct-acting sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This sequence valve controls the pressure at port 1 relative to the atmospheric vent and is suitable for load holding applications. It incorporates Sun's floating style construction, minimizing potential binding of internal parts due to excessive installation torque or machining variations. The valve features a cavity T-13A series 1 with a capacity of 15 gpm (60 L/min) and operates at a maximum pressure of 5000 psi (350 bar). It offers a typical response time of 2 ms and has a maximum leakage rate of 10 drops/min (0.7 cc/min) upon reseat. The adjustment mechanism allows for increasing settings with up to four turns clockwise, while installation requires a torque of 30\u201335 lbf ft (41\u201347 Nm). The adjustment screw has an internal hex size of 5/32 in. (4 mm), and the locknut requires a torque of 80\u201390 lbf in. (9\u201310 Nm). Weighing approximately .30 lb (.15 kg), this model includes Viton seals as part of its cartridge seal kit, ensuring durability and performance in various conditions.
