SUN HYDRAULICS
RVGDKAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

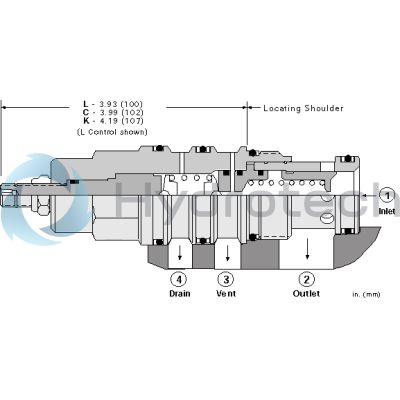

The Sun Hydraulics RVGDKAN (RVGDKAN) is a ventable, pilot-operated, balanced piston relief cartridge that functions as a normally closed pressure regulating valve. This advanced hydraulic component is designed to open to tank port 2 when the pressure at inlet port 1 reaches the preset valve setting, thereby throttling flow to maintain regulated pressure. It features a vent port (port 3) for remote control by other pilot or two-way valves and an external drain port (port 4) that ensures insensitivity to back pressure. The RVGDKAN is known for its accuracy, low-pressure rise versus flow characteristics, smooth operation, and moderate speed. This relief cartridge is capable of accepting maximum pressure at port 2 and is suitable for cross-port relief circuits, although spool leakage should be considered in such applications. The main stage orifice of the valve is protected by a 150-micron stainless steel screen. It is not recommended for load-holding applications due to potential spool leakage. The valve setting can be directly influenced by the pressure at port 4 at a ratio of 1:1, with a maximum allowable pressure of 5000 psi (350 bar). The RVGDKAN incorporates Sun's floating style construction which minimizes the risk of internal parts binding from excessive installation torque or cavity/cartridge machining variations. It can handle up to 60 gpm (240 L/min) capacity and operates under a maximum pressure of 5000 psi (350 bar). The response time typically measures around 10 ms with maximum valve leakage at specified conditions being approximately 4 in\u00b3/min (65 cc/min). Adjustments can be made with up to five clockwise turns using an internal hex size of 5/32 inches, while installation requires a torque range between 150-160 lbf ft (203-217 Nm). The model weighs approximately 1.60 lb (0.70 kg), and it comes with Viton seals as part of its cartridge seal kit.
