SUN HYDRAULICS
RVGAKWN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

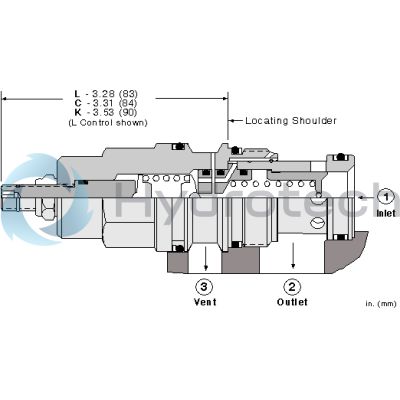

The Sun Hydraulics RVGAKWN (RVGAKWN) is a ventable, pilot-operated, balanced piston relief cartridge designed to function as a normally closed pressure regulating valve. Upon reaching the valve setting at the inlet port 1, the valve opens to tank port 2, throttling flow to manage pressure effectively. It features a vent port 3 for remote control via other pilot or two-way valves. This model is lauded for its accuracy, low pressure rise versus flow, smooth and quiet operation, and moderate speed. It can accept maximum pressure at port 2 and is suitable for cross port relief circuits; however, spool leakage should be considered in such applications. The main stage orifice is safeguarded by a 150-micron stainless steel screen. Notably, it is unsuitable for load holding applications due to spool leakage. The back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. Cartridges with EPDM seals are compatible with phosphate ester fluids but can be damaged by petroleum-based fluids or greases. The floating style construction minimizes internal part binding from excessive installation torque or cavity/cartridge machining variations. This cartridge fits into Cavity T-17A and belongs to Series 3 with a capacity of up to 60 gpm (240 L/min). Factory pressure settings are established at 4 gpm (15 L/min) with a maximum operating pressure of 5000 psi (350 bar). Control pilot flow ranges from 15-20 in\u00b3/min (0.25-0.33 L/min), and typical response time is approximately 10 ms. Maximum valve leakage at 110 SUS (24 cSt) is about 4 in\u00b3/min (65 cc/min) at 1000 psi (70 bar). Adjustment requires approximately five clockwise turns to increase settings, with specific torque values provided for installation and adjustments. The model weighs around 1.60 lb (0.70 kg), and Viton seal kits are available under part number 990017006.
