SUN HYDRAULICS
RVGAKGV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

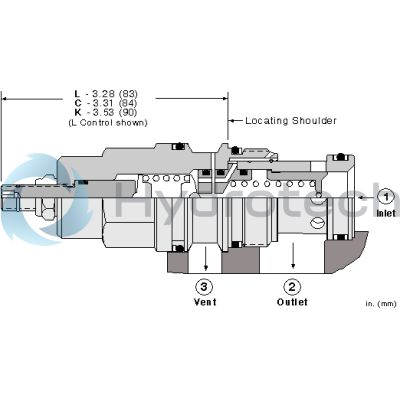

The Sun Hydraulics RVGAKGV (RVGAKGV) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation. This valve is normally closed and activates when the inlet pressure at port 1 reaches the preset level, allowing flow to tank port 2 to manage the pressure effectively. It features a vent port 3 that facilitates remote control by other pilot or two-way valves, enhancing its versatility in various applications. Known for its accuracy and low-pressure rise relative to flow, this valve operates smoothly and quietly with moderate speed. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, although spool leakage should be considered in such configurations. The main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability. However, it is not recommended for load holding applications due to potential spool leakage. The back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. For systems using phosphate ester fluids, cartridges with EPDM seals are available; however, these seals are not compatible with petroleum-based fluids. This cartridge incorporates Sun's floating style construction to minimize internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. It fits into a T-17A cavity of Series 3 with a capacity of up to 60 gpm (240 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with control pilot flow between 15-20 in\u00b3/min (0.25-0.33 L/min) and typical response time of approximately 10 ms. Maximum valve leakage is rated at four in\u00b3/min at 1000 psi (65 cc/min at 70 bar). Installation requires specific torque values for optimal performance and longevity.
