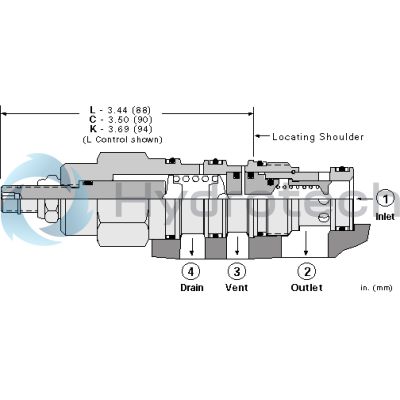

The Sun Hydraulics RVEDKAV (RVEDKAV) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain, designed as a normally closed pressure regulating valve. When the inlet port 1 pressure reaches the valve setting, it opens to tank port 2, throttling flow to regulate pressure. The valve features a vent port 3 for remote control and a drain port 4 that renders it insensitive to back pressure. Known for its accuracy and low-pressure rise versus flow, the RVEDKAV operates smoothly and quietly with moderate speed. This model can accept maximum pressure at port 2, making it suitable for cross-port relief circuits; however, spool leakage should be considered in such applications. It is not recommended for load holding applications due to potential leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen. The valve's setting directly correlates with the pressure at port 4 at a 1:1 ratio and should not exceed 5000 psi (350 bar). Cartridges with EPDM seals are intended for systems using phosphate ester fluids; exposure to petroleum-based fluids can damage these seals. The RVEDKAV can be specified with or without special settings using W or Y controls, adjustable throughout their range unless a special maximum setting is specified. Incorporating Sun's floating style construction minimizes internal part binding risks from excessive installation torque or cavity machining variations. It fits into Cavity T-22A Series 2 and has a capacity of up to 30 gpm (120 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with maximum operating pressures of up to 5000 psi (350 bar). Control pilot flow ranges between 10-15 in\u00b3/min (0.16-0.25 L/min), while typical response time is around 10 ms. Maximum valve leakage at specific conditions is rated at approximately 3 in\u00b3/min (50 cc/min).
