SUN HYDRAULICS
RVEBUDV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

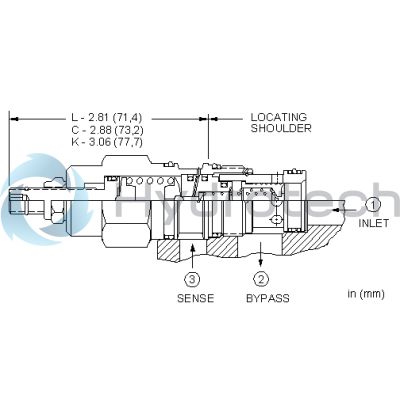

The Sun Hydraulics RVEBUDV (RVEBUDV) is a versatile three-port normally closed modulating element with relief, designed to perform dual functions when used in conjunction with an external orifice. This component acts as a bypass compensator, regulating a priority flow into the circuit while diverting any excess input flow to the tank port 2. Additionally, it functions as a standard relief valve if the pressure at inlet port 1 exceeds the valve's preset threshold. The compensating pressure for all ranges is maintained at 120 psi (8 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, indicating various bypass flows. With a capacity of 20 gpm (80 L/min) and maximum operating pressure of 5000 psi (350 bar), this valve is robust and efficient. It features a typical response time of 10 ms and offers minimal leakage, with maximum valve leakage rated at 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). Adjustments can be made using either W or Y controls, with up to 5.5 clockwise turns available to increase settings, unless a special setting is specified. Installation requires a torque of 45-50 lbf ft (61-68 Nm), while its compact design includes specific hex sizes for both the valve and locknut adjustments. Weighing just .70 lb (.30 kg), this model also comes with an optional Viton seal kit for enhanced durability in various conditions.
