SUN HYDRAULICS
RVEBJBN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

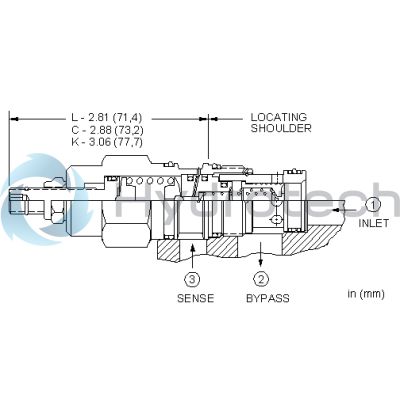

The Sun Hydraulics RVEBJBN (Material Number: RVEBJBN) is a three-port, normally closed modulating element with relief functionality. It is designed to perform dual functions when used with an external orifice. Primarily, it acts as a bypass compensator that prioritizes flow into a circuit based on the external orifice's specifications. Excess input flow beyond this priority level is redirected to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve's set threshold, it functions as a conventional relief valve. The compensating pressure across all ranges is maintained at 120 psi (8 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, highlighting different bypass flows, which determine the valve's capacity and performance. The RVEBJBN model supports various configurations with W and Y controls for adjustable settings throughout its range or specific maximum settings if specified. It fits into a T-2A cavity and offers a series 2 capacity of up to 20 gpm (80 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with a typical response time of 10 ms. At an oil viscosity of 110 SUS (24 cSt), maximum valve leakage is minimal at 3 in\u00b3/min (50 cc/min). Adjustment involves up to five clockwise turns to increase settings, with installation requiring specific torques for both the valve and locknut hex sizes. The model weighs approximately 0.70 lb (0.30 kg) and utilizes a Viton seal kit for optimal performance in various applications.
