SUN HYDRAULICS
RVEBJAV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

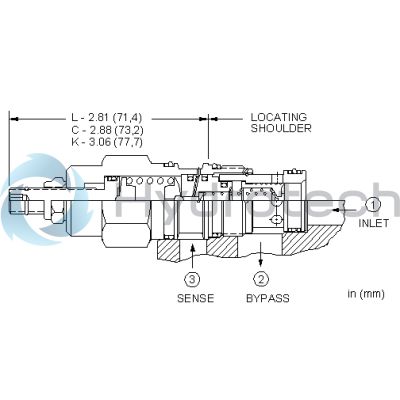

The Sun Hydraulics RVEBJAV (RVEBJAV) is a three-port, normally closed modulating element with relief functions that integrates seamlessly with an external orifice. This component serves dual purposes: it acts as a bypass compensator to regulate priority flow into the circuit based on the external orifice, and it functions as a standard relief valve when inlet port pressure reaches the specified setting. The compensating pressure for all ranges is maintained at 120 psi (8 bar). Its performance is depicted through curves that illustrate system pressure against the pressure differential created across the control orifice, with bypass flow determining capacity and performance. The valve features adjustable W and Y controls, which can be set to a special maximum setting if required. It boasts a cavity T-2A series with a capacity of 20 gpm (80 L/min) and operates under a maximum pressure of 5000 psi (350 bar). The typical response time is 10 ms, with minimal leakage at specified conditions. Installation requires specific torque settings for optimal performance, including valve installation torque of 45-50 lbf ft (61-68 Nm) and locknut torque of 80-90 lbf in (9-10 Nm). The adjustment screw has an internal hex size of 5/32 in. (4 mm), while the locknut hex size measures 9/16 in. (15 mm). Weighing just .70 lb (.30 kg), this model offers robust functionality within compact dimensions. A Viton seal kit is available under part number 990202006 to ensure durability and reliability in various applications.
