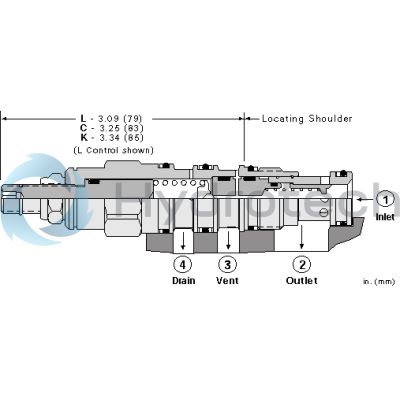

The Sun Hydraulics RVCDLHV (RVCDLHV) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain designed for precise pressure regulation in hydraulic systems. This normally closed valve begins to open to tank port 2 when the inlet port 1 pressure reaches the set threshold, throttling flow to maintain desired pressure levels. It features a vent port 3 for remote control and a drain port 4, making it insensitive to back pressure. The valve is known for its accuracy, low-pressure rise versus flow, smooth operation, quietness, and moderate response speed of about 10 ms. The RVCDLHV can handle maximum pressures at port 2 and is suitable for cross-port relief circuits; however, users should consider spool leakage in such applications. It incorporates a main stage orifice protected by a 150-micron stainless steel screen but is not recommended for load-holding applications due to potential leakage. The valve setting is directly influenced by the pressure at port 4 at a 1:1 ratio, with a maximum allowable pressure of 5000 psi (350 bar). Cartridges configured with EPDM seals are compatible with phosphate ester fluids but are vulnerable to petroleum-based substances. The valve offers adjustable settings using W or Y controls unless specified otherwise for special settings. Its construction minimizes internal binding risks due to installation torque or machining variations. With a cavity T-21A series and capacity of up to 15 gpm (60 L/min), this model requires installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), and the locknut requires torque between 80-90 lbf in (9-10 Nm). Weighing .40 lb (.20 kg), it provides reliable performance in various hydraulic applications requiring precise pressure control.
