SUN HYDRAULICS
RVCBKWN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

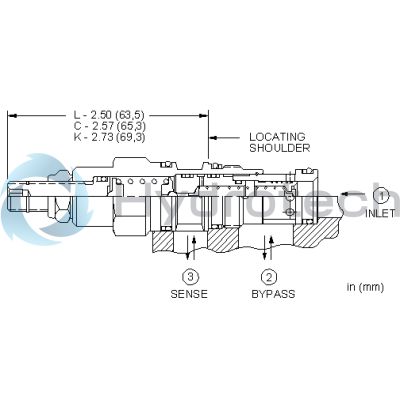

The Sun Hydraulics RVCBKWN (RVCBKWN) is a versatile three-port normally closed modulating element with relief capabilities, designed to provide dual functions when used with an external orifice. This component acts as a bypass compensator, regulating priority flow into the circuit based on the external orifice's specifications, while any excess input flow is redirected to tank port 2. Additionally, if the pressure at inlet port 1 surpasses the valve's set point, it functions as a standard relief valve. The RVCBKWN offers different compensating pressures: 45 psi (3 bar) for range A, 30 psi (2 bar) for range B, and 100 psi (7 bar) for range C. Its performance is illustrated by curves that plot system pressure against the pressure differential across the control orifice, with bypass flow determining capacity and performance. Key specifications include a maximum operating pressure of 5000 psi (350 bar), a response time of approximately 10 ms, and maximum valve leakage at specified conditions of 2 in\u00b3/min (30 cc/min). The valve features adjustable settings with up to five clockwise turns to increase setting pressure and requires specific installation torques for both the valve body and locknut. With a capacity of handling flows up to 10 gpm (40 L/min), this model is designed for robust applications requiring precise hydraulic control. The RVCBKWN model also includes Viton seals and weighs approximately .40 lb (.20 kg), ensuring durability and reliability in demanding environments.
