SUN HYDRAULICS
RVCAKCN

$94.50 USD

Tags:

SUN HYDRAULICS
Material:RVCAKCN
Model:RVCA-KCN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

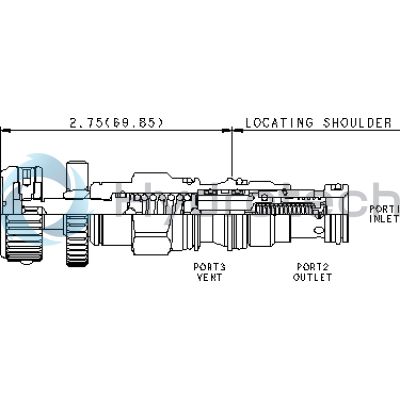

The Sun Hydraulics RVCAKCN (Material Number: RVCAKCN) is a ventable, pilot-operated, balanced piston relief cartridge designed to regulate pressure through a normally closed configuration. This valve operates by opening to tank port 2 when the inlet port 1 pressure reaches the set threshold, thereby throttling flow to maintain pressure levels. It features a vent port 3 for remote control via other pilot or 2-way valves, offering accuracy, low pressure rise versus flow, smooth and quiet operation, and moderate speed. The valve can accept maximum pressure at port 2 and is suitable for cross-port relief circuits; however, spool leakage should be considered in such applications. The main stage orifice is protected by a 150-micron stainless steel screen. This model is not recommended for load-holding applications due to potential spool leakage. Any back pressure on tank port 2 adds directly to the valve setting at a 1:1 ratio. Cartridges with EPDM seals are compatible with systems using phosphate ester fluids but may be damaged by petroleum-based fluids. The floating style construction minimizes internal part binding due to excessive installation torque or machining variations. The RVCAKCN fits in Cavity T-11A Series 1 with a capacity of up to 15 gpm (60 L/min) and operates at a maximum pressure of 5000 psi (350 bar). It has a control pilot flow range of 7-10 in\u00b3/min (0.11-0.16 L/min) and typical response time of around 10 ms. Maximum valve leakage is specified at 2 in\u00b3/min (30 cc/min) at 1000 psi (70 bar). Adjustment involves up to five clockwise turns to increase setting, utilizing an internal hex screw size of 5/32 inch (4 mm). The valve weighs approximately .40 lb (.20 kg), and its installation requires specific torque settings for optimal performance.

Description

Ventable, pilot-operated, balanced piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

A remote pilot relief on port 3 (vent) will control the valve below its own setting.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-11A
Series	1
Capacity	15 gpm60 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	7 - 10 in³/min.0,11 - 0,16 L/min.
Response Time - Typical	10 ms10 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	2 in³/min.@1000 psi30 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.40 lb0,20 kg
Seal kit - Cartridge	Viton: 990-011-006

Show FAQ

Additional Resources

Notes:

For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
