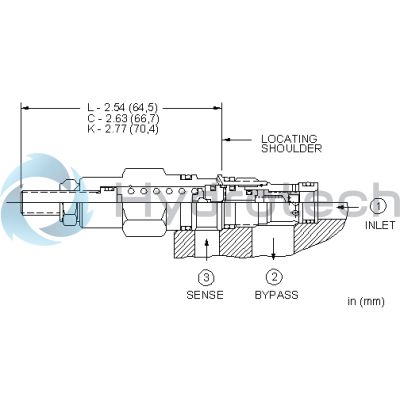

The Sun Hydraulics RVBBKWN (Material Number: RVBBKWN) is a three-port normally closed modulating element with relief capabilities, designed to provide dual functionalities when paired with an external orifice. This component acts as a bypass compensator in the main stage, managing priority flow into a circuit as determined by the external orifice, while any surplus input flow is redirected to tank port 2. The valve also functions as a standard relief valve if the pressure at inlet port 1 exceeds the preset valve setting. The compensating pressure for all ranges is maintained at 50 psi (3.5 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, with various curves representing different bypass flows. Notably, this valve's capacity and performance are dictated by bypass flow rather than control flow. The RVBBKWN model fits into cavity T-163A and belongs to Series 0, with a capacity of 5 gpm (20 L/min). It can withstand a maximum operating pressure of up to 5000 psi (350 bar) and has a typical response time of 10 ms. Valve leakage is minimal at 110 SUS (24 cSt), measuring approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Adjustments are made via clockwise turns to increase settings, requiring about five turns. The valve features a hex size of 3/4 inch (19.1 mm) and an installation torque range of 20\u201325 lbf-ft (27\u201333 Nm). Additionally, it includes an internal hex size adjustment screw of 5/32 inch (4 mm), a locknut hex size of 9/16 inch (15 mm), and requires locknut torque between 80\u201390 lbf-in (9\u201310 Nm). The model weighs approximately .30 lb (.15 kg) and utilizes Viton seal kits for optimal performance.
