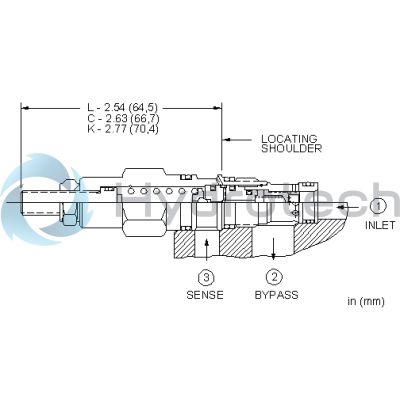

The Sun Hydraulics RVBBCQN (RVBBCQN) is a versatile three-port normally closed modulating element with relief. It is designed to perform dual functions when paired with an external orifice. Primarily, this component acts as a bypass compensator that regulates priority flow into a circuit based on the external orifice's specifications. Any input flow surpassing the priority flow is redirected to tank port 2. Moreover, if the pressure at inlet port 1 exceeds the valve's predetermined setting, it functions as a traditional relief valve. This model features a compensating pressure for all ranges at 50 psi (3.5 bar) and boasts a maximum operating pressure of 5000 psi (350 bar). The performance curve illustrates system pressure on the X-axis against the pressure differential across the control orifice on the Y-axis, highlighting various bypass flows where capacity and performance are determined by these flows rather than control flow. The RVBBCQN fits into cavity T-163A and offers a capacity of 5 gpm (20 L/min), with factory pressure settings established at 4 gpm (15 L/min). It exhibits a typical response time of 10 ms and maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min (30 cc/min) at 1000 psi (70 bar). For installation, it requires a valve hex size of 3/4 inch (19.1 mm) and should be torqued between 20-25 lbf ft (27-33 Nm). Adjustments are made via an internal hex screw size of 5/32 inch (4 mm), with locknut adjustments requiring torque between 80-90 lbf in (9-10 Nm). This model weighs approximately .30 lb (.15 kg) and uses Viton seal kits under cartridge number 990163006.
