SUN HYDRAULICS
RVBBCCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

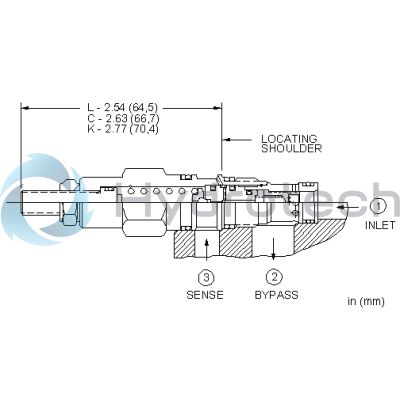

The Sun Hydraulics RVBBCCN (RVBBCCN) is a three-port, normally closed modulating element with relief capabilities, designed for versatile hydraulic applications. This component serves dual functions when integrated with an external orifice. Primarily, it acts as a bypass compensator that regulates priority flow into a circuit, based on the external orifice's specifications. Any input flow exceeding this priority flow is redirected to tank port 2. Additionally, if the pressure at inlet port 1 surpasses the valve's preset threshold, it functions as a standard relief valve. The compensating pressure across all ranges is maintained at 50 psi (3.5 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential created by the valve across the control orifice on the Y-axis, with curves indicating various bypass flows. The RVBBCCN features a cavity size of T-163A with a series designation of 0 and offers a capacity of up to 5 gpm (20 L/min). It operates efficiently under maximum pressures of 5000 psi (350 bar) and boasts a typical response time of 10 milliseconds. Valve leakage is minimal at 2 in\u00b3/min (30 cc/min) under specific conditions. Adjustment settings are made via clockwise turns to increase settings, with precise torque requirements for installation and locknut adjustments. The model weighs approximately 0.30 lb (0.15 kg), and its seal kit options include Viton materials for enhanced durability and performance in various environments.
