SUN HYDRAULICS
RVBALBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

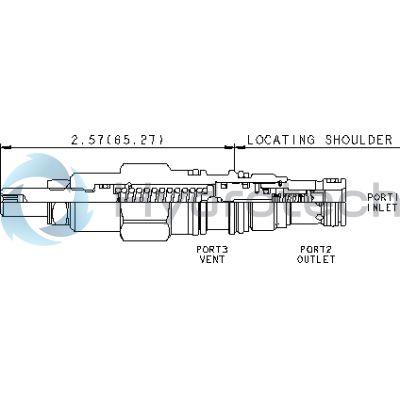

The Sun Hydraulics RVBALBV (Material Number: RVBALBV) is a ventable, pilot-operated, balanced piston relief cartridge designed to function as a normally closed pressure regulating valve. When the inlet port pressure reaches the valve setting, it opens to the tank port, throttling flow to maintain pressure. It features a vent port that enables remote control via other pilot or 2-way valves. This valve is noted for its accuracy, low-pressure rise versus flow, smooth and quiet operation, and moderate speed. It can be controlled remotely by a pilot relief on the vent port and can handle maximum pressure at port 2, making it suitable for cross-port relief circuits\u2014though spool leakage should be considered in such applications. The minimum pressure setting is 75 psi (5 bar) for all spring ranges. However, it is not recommended for load holding applications due to potential spool leakage. Any back pressure on the tank port directly adds to the valve setting at a 1:1 ratio. The main stage orifice is contamination-protected and features Sun's floating style construction to reduce internal binding from installation torque or machining variations. The RVBALBV fits into Cavity T-163A with a series 0 capacity of 7.5 gpm (30 L/min) and has factory pressure settings established at 4 gpm (15 L/min). It operates up to a maximum of 5000 psi (350 bar) with a control pilot flow of 7-10 in\u00b3/min (0.11-0.16 L/min). Typical response time is around 10 ms with maximum valve leakage at 110 SUS being approximately 2 in\u00b3/min (30 cc/min). The adjustment requires up to five clockwise turns to increase settings with specific torque requirements for installation and adjustment components provided for optimal performance and maintenance efficiency.
