SUN HYDRAULICS
RSJSKNN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

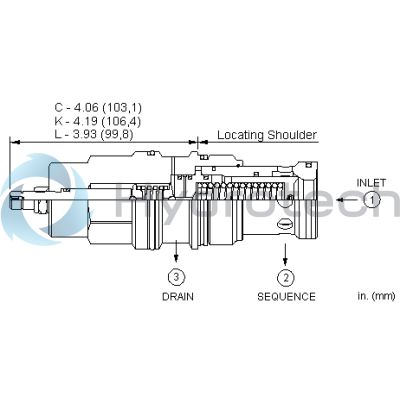

The Sun Hydraulics RSJSKNN (RSJSKNN) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 exceeds the valve setting. It controls the pressure at port 1 relative to the drain port 3, and remains insensitive to back pressure at port 2 up to the valve setting, allowing it to be used in place of two-port relief valves when there is pressure in the return line. These valves are interchangeable with other three-port sequence cartridges of the same frame size and flow path. The main stage orifice is protected by a 150-micron stainless steel screen, and pressure at port 3 directly adds to the valve setting at a 1:1 ratio, not exceeding 5000 psi (350 bar). The internal modulating mechanism makes these valves resistant to cavitation issues such as noise and manifold erosion. They are suitable for use in cross-port relief circuits and feature Sun's floating style construction for minimizing internal part binding due to excessive torque or machining variations. The valve has a capacity of up to 120 gpm (480 L/min) and operates under a maximum pressure of 5000 psi (350 bar). It features an adjustment range with five clockwise turns needed for increasing settings, ensuring precise control. The RSJSKNN model weighs approximately 3.10 lb (1.40 kg) and includes specific installation requirements such as a hex size of 1-5/8 inches (41.3 mm) for installation torque between 350-375 lbf ft (474-508 Nm).
