SUN HYDRAULICS
RSHCQAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

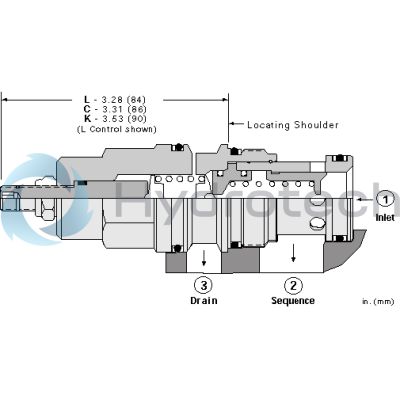

The Sun Hydraulics RSHCQAN (RSHCQAN) is a pilot-operated, balanced piston sequence valve designed to manage secondary circuit flow once the inlet port pressure exceeds the valve setting. This sequence valve controls the pressure at port 1 relative to the drain port 3 and remains unaffected by back pressure at port 2, up to the valve setting. It can regulate pressure in place of two-port relief valves when there's return line pressure. All three-port sequence cartridges are interchangeable, maintaining consistent flow paths and cavity specifications for a given frame size. As inlet pressure at port 1 rises above the valve setting relative to port 3, pilot flow increases accordingly. The main stage orifice features a protective 150-micron stainless steel screen, and the maximum allowable pressure at port 3 is additive to the valve setting in a 1:1 ratio, not exceeding 5000 psi (350 bar). This model is not suitable for load-holding applications due to spool leakage. Adjustment controls (W and Y) can be specified with or without special settings; without specification, they adjust throughout their range, while specified settings indicate maximum adjustment levels. The Sun floating style construction minimizes internal part binding due to installation torque or machining variations. Its capacity reaches up to 60 gpm (240 L/min), with factory pressure settings established at 4 gpm (15 L/min). It operates under a maximum pressure of 5000 psi (350 bar) with a control pilot flow of 15 - 20 in\u00b3/min (0.25 - 0.33 L/min) and typical response time of approximately 10 ms. Maximum leakage is recorded at about 4 in\u00b3/min under specific conditions, with various adjustable components allowing fine-tuning of performance parameters. The model weighs approximately 1.50 lb (0.70 kg) and includes a Viton seal kit for cartridge maintenance.
