SUN HYDRAULICS
RPGEQDV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

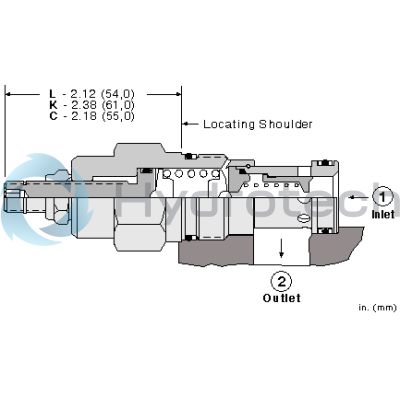

The Sun Hydraulics RPGEQDV (RPGEQDV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. These valves are normally closed and open quickly to tank port 2 when the inlet pressure at port 1 reaches the set level, effectively throttling flow to limit pressure rise. Despite their fast response time of approximately 2 milliseconds, these valves prioritize speed over smoothness. They exhibit low pressure rise versus flow characteristics and are suitable for cross-port relief circuits, though spool leakage should be considered in such applications. The main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability under high-pressure conditions of up to 5000 psi (350 bar). However, these cartridges are not recommended for load-holding applications due to potential spool leakage. The RPGEQDV model features a capacity of 50 gpm (200 L/min) and is compatible with systems utilizing EPDM seals for phosphate ester fluids; exposure to petroleum-based substances can damage the seals. Its design incorporates Sun's floating style construction to mitigate internal part binding from excessive installation torque or machining variations. The valve's cavity is T-3A Series 2, allowing interchangeability with other two-port relief cartridges of similar frame size. Installation requires a torque range of 45-50 lbf ft (61-68 Nm), with adjustments made via an internal hex screw and secured by a locknut torqued between 80-90 lbf in (9-10 Nm). This robust component weighs approximately .50 lb (.25 kg) and comes with an optional Viton seal kit numbered 990203006 for enhanced performance in specific applications.
