SUN HYDRAULICS
QPABLBV
$179.20 USD
Tags:
- SUN HYDRAULICS
- Material:QPABLBV
- Model:QPAB-LBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics QPABLBV (Material Number: QPABLBV) is an accumulator sense, pump unload pilot valve designed to optimize hydraulic system performance by sensing pressure in an accumulator at port 1. Once the pressure reaches the set point, it connects port 2 to port 3, venting a relief valve and unloading the pump. With a 20:1 ratio between unload setting and reset, the valve blocks port 2 from port 3 when the pressure falls below 80% of the set point, allowing the pump to recharge the accumulator. For effective operation, a separate check valve is required between port 1 and the pump. This model features a positively sealed accumulator sensing area and utilizes a spool design for maintaining a fixed differential ratio. The minimum clearances between spool and sleeve, along with a seal on the pilot piston diameter, reduce silting potential. A separate drain line is necessary to prevent erratic operations due to tank line pressure fluctuations. The QPABLBV has a cavity size of T-11A with Series 1 capacity of 46 in\u00b3/min (0.75 L/min) and can withstand maximum operating pressures of up to 5000 psi (350 bar). It incorporates Sun's floating style construction to minimize binding risks due to installation torque or machining variations. The adjustment requires up to five clockwise turns for increasing settings, with specific torque requirements for installation and locknut adjustments.
The Sun Hydraulics QPABLBV (Material Number: QPABLBV) is an accumulator sense, pump unload pilot valve designed to optimize hydraulic system performance by sensing pressure in an accumulator at port 1. Once the pressure reaches the set point, it connects port 2 to port 3, venting a relief valve and unloading the pump. With a 20:1 ratio between unload setting and reset, the valve blocks port 2 from port 3 when the pressure falls below 80% of the set point, allowing the pump to recharge the accumulator. For effective operation, a separate check valve is required between port 1 and the pump. This model features a positively sealed accumulator sensing area and utilizes a spool design for maintaining a fixed differential ratio. The minimum clearances between spool and sleeve, along with a seal on the pilot piston diameter, reduce silting potential. A separate drain line is necessary to prevent erratic operations due to tank line pressure fluctuations. The QPABLBV has a cavity size of T-11A with Series 1 capacity of 46 in\u00b3/min (0.75 L/min) and can withstand maximum operating pressures of up to 5000 psi (350 bar). It incorporates Sun's floating style construction to minimize binding risks due to installation torque or machining variations. The adjustment requires up to five clockwise turns for increasing settings, with specific torque requirements for installation and locknut adjustments.

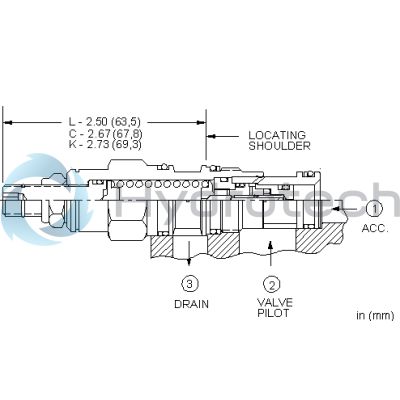

The accumulator sense, pump unload pilot valve is used to sense pressure in an accumulator at port 1 of the valve and when the pressure at port 1 reaches the valve setting, port 2 connects to port 3 to vent a relief valve and unload the pump. This valve has a 20% ratio between unload setting and reset; when pressure at port 1 falls below 80% of the valve setting, port 2 is blocked from port 3 and the pump will come back online to recharge the accumulator. This valve requires a separate check valve between port 1 and the pump. Another version of the accumulator sense, pump unload valve, QCDB, includes a free-flow check valve for pump flows under 12 gpm (50 L/min).
- The pressure differential between unload and reset will be within +/- 1% of the stated ratio of the valve with up to an additional 25 psi (1,7 bar) due to dynamic seal friction.
- The accumulator sensing area is positively sealed.
- The spool design of this valve allows it to maintain a fixed differential ratio because the areas are created by diameters on the spool that will not wear or change with use.
- Minimum clearances between the spool and sleeve and a seal on the pilot piston diameter significantly reduce the potential for silting.
- When applying this cartridge, a separate drain line is required to prevent erratic operation caused by tank line pressure fluctuations.
- NOTE: Careful consideration should be given when selecting an adjustment range. System pressure drops and flows tend to affect the operation of unloading valves. Low operating pressures combined with low differentials result in a very narrow band between unload and reset, requiring precise system design. High flow rates typically mean high pressure drops, which subtract from the differential the valve has to work with.
- Sun has designed a variety of standard accumulator/pump unload assemblies with a variety of features. These assemblies can be found on our website under SOLUTIONS: ACCUMLATOR SENSE, PUMP UNLOAD.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 46 in³/min.0,75 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Pilot Flow Capacity | 46 in³/min.0,75 L/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .35 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
