The Sun Hydraulics PVDAWBN (Material Number: PVDAWBN) is an externally drained, pilot-operated pressure reducing/relieving valve designed to manage high primary pressures at the inlet port 2, reducing them to a consistent lower pressure at port 1 while providing a full-flow relief function from port 1 to tank port 3. This valve's pilot section is drained at port 4, making it insensitive to pressure at tank port 3 and allowing for remote control by pilot or two-way valves. The maximum allowable pressure at port 3 is limited to 3000 psi (210 bar), and the valve exhibits very low deadband transition between reducing and relieving modes. Recommended maximum inlet pressures vary based on adjustment ranges, with a maximum differential of up to 5000 psi (350 bar) for certain ranges. The valve is characterized by its exceptionally flat pressure-flow characteristics, stability, and low hysteresis. Pressure on the drain port directly affects the valve setting in a 1:1 ratio and should not exceed 5000 psi (350 bar). Although these are not fast-acting valves, they are suitable for applications requiring stable pressure regulation. The product incorporates Sun's floating style construction to minimize internal binding due to installation torque or machining variations. It features a cavity type T-21A, series 1 capacity of up to 10 gpm (40 L/min), with factory pressure settings established under blocked control conditions. The valve allows reverse flow from reduced pressure port 1 to inlet port 2 but may necessitate an additional check valve if reverse free flow is required in the circuit. The model weighs approximately .30 lb (.15 kg) and comes with Viton seals as part of its construction materials.

Externally drained, pilot-operated pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining the pilot section at port 4 makes these valves insensitive to pressure at tank (port 3) and provides a means for remote control by pilot or 2-way valves.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • Pilot operated valves exhibit very low dead-band transition between reducing and relieving modes.
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pressure at port 4 should not exceed 5000 psi (350 bar).
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

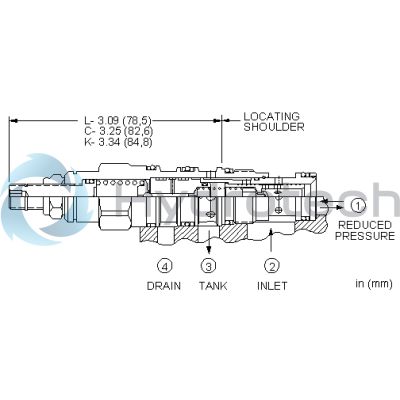

CavityT-21A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-021-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) D and E are 2000 psi (140 bar) W is 5000 psi (350 bar) inlet pressure
