SUN HYDRAULICS
PVDALJV


$125.80 USD

Tags:

  • SUN HYDRAULICS
  • Material:PVDALJV
  • Model:PVDA-LJV
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

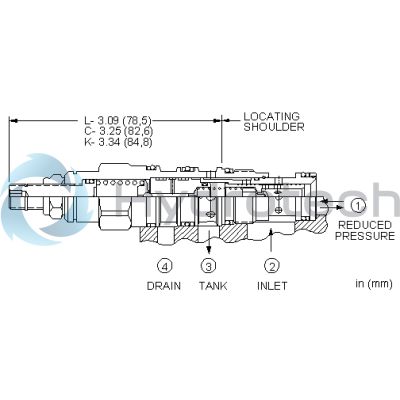

The Sun Hydraulics PVDALJV (PVDALJV) is an externally drained, pilot-operated pressure reducing/relieving valve designed to regulate high primary pressures at the inlet port 2 to a consistent reduced pressure at port 1, while offering full-flow relief from port 1 to tank port 3. The valve's design allows it to be insensitive to pressure at tank port 3 when the pilot section is drained at port 4, enabling remote control through pilot or two-way valves. The maximum pressure at port 3 should not exceed 3000 psi (210 bar), and the recommended maximum inlet pressure varies according to the adjustment range, with ranges D, E, N, and Q tested with a maximum differential of 2000 psi (140 bar), while ranges A, B, and H can handle up to a 3000 psi (210 bar) differential. The valve exhibits low deadband transition between reducing and relieving modes and exceptionally flat pressure-flow characteristics for stability and low hysteresis. Notably, the pressure on drain port 4 directly adds to the valve setting at a 1:1 ratio but should not surpass 5000 psi (350 bar). Although these pilot-operated valves are not fast-acting due to their nature, they provide superior stability compared to direct-acting valves when dynamic response is less critical. For applications requiring reverse free flow from reduced pressure port 1 to inlet port 2 without closing the main spool, incorporating a separate check valve is advisable. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. This model has a factory-established maximum operating pressure of up to 5000 psi (350 bar), with an adjustable range facilitated by W or Y control settings if specified.

Externally drained, pilot-operated pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining the pilot section at port 4 makes these valves insensitive to pressure at tank (port 3) and provides a means for remote control by pilot or 2-way valves.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • Pilot operated valves exhibit very low dead-band transition between reducing and relieving modes.
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pressure at port 4 should not exceed 5000 psi (350 bar).
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-21A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-021-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) D and E are 2000 psi (140 bar) W is 5000 psi (350 bar) inlet pressure
