PSHBKWN


$316.30 USD

Tags:

  • SUN HYDRAULICS
  • Material:PSHBKWN
  • Model:PSHB-KWN
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

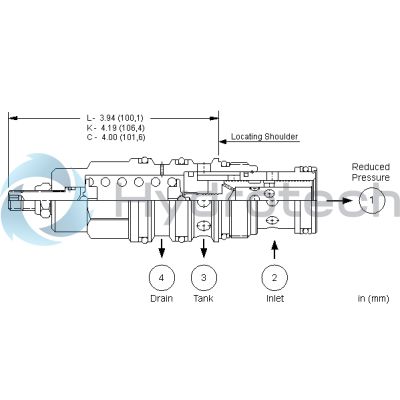

The Sun Hydraulics PSHBKWN (PSHBKWN) is a direct-acting, pressure-reducing/relieving valve designed to maintain a consistent reduced pressure at port 1 from a higher primary pressure at inlet port 2, while offering a full-flow relief function from port 1 to tank port 3. The valve features a damped construction for stable operation, making it suitable for applications requiring high reduced pressure. It is particularly effective in accumulator circuits due to its lack of pilot control flow, which minimizes secondary circuit leakage. The direct-acting design ensures reliable performance even in contaminated systems and under dead-headed conditions. Transitioning between reducing and relieving modes involves a step that equals 5% of the high end of the adjustment range, independent of the valve setting, which may not be ideal for counterbalancing tasks. The valve's dynamic response surpasses that of equivalent pilot-operated models, and the drain port 4's pressure directly affects the valve setting at a 1:1 ratio; this should not exceed 5000 psi. Leakage is specified out of port 3 with a supply pressure of 2000 psi and is influenced by pressure differential and fluid viscosity. Reverse flow from reduced pressure port 1 to inlet port 2 could close the main spool; thus, an additional check valve may be necessary if reverse free flow is required. The PSHBKWN model incorporates Sun's floating style construction to reduce internal part binding risks due to excessive installation torque or machining variations. It has a maximum operating pressure of 5000 psi, with factory pressure settings established under blocked control conditions. The valve's installation torque ranges from 150 to 160 lbf ft, with an adjustment screw internal hex size of 5/32 inches and locknut torque between 80 and 90 lbf in.

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining port 4 makes the valve insensitive to pressure at port 3. These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
  • Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
  • Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
  • Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
  • Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-23A
Series3
Capacity40 gpm160 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)4 in³/min.@1000 psi65 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 1/4 in.31,8 mm
Valve Installation Torque150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight1.30 lb0,60 kg
Seal kit - CartridgeViton: 990-023-006
