The Sun Hydraulics PSDBKEN (Material Number: PSDBKEN) is a direct-acting, pressure reducing-relieving valve designed to maintain a consistent reduced pressure at port 1 by regulating high primary pressure from the inlet port 2. This model also incorporates a full-flow relief function allowing discharge from port 1 to tank port 3, with an additional draining port 4 that ensures the valve's operation remains unaffected by pressure changes at port 3. Engineered for stable performance with its damped construction, this valve is suitable for high reduced pressure applications and performs reliably in contaminated systems due to its direct-acting design. It is particularly effective in accumulator circuits, minimizing secondary circuit leakage as it lacks pilot control flow. The PSDBKEN valve is tested for functionality with an inlet pressure of up to 5000 psi (350 bar) across all spring ranges and can handle a maximum pressure of up to 3000 psi (210 bar) at port 3. It features a unique transitional step between reducing and relieving modes, which constitutes about 5% of the high end of the adjustment range, making it less ideal for counterbalancing tasks but offering superior dynamic response compared to pilot-operated models. The valve's setting can be adjusted by controlling the drain port pressure, with any increase directly additive at a 1:1 ratio. Leakage levels are specified as minimal under specified conditions and are influenced by factors such as differential pressure and fluid viscosity. For installation, the valve requires specific torque settings and hex sizes for secure mounting and adjustment. Its floating style construction helps prevent internal part binding due to excessive installation torque or machining variations, ensuring reliable operation over time.

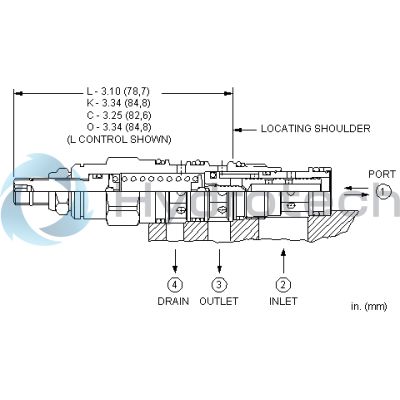

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining port 4 makes the valve insensitive to pressure at port 3. These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
  • Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
  • Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
  • Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
  • Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-21A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)2 in³/min.@1000 psi30 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-021-006

Show FAQ

Additional Resources



Notes:
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
