SUN HYDRAULICS
PSDBCAN


$118.00 USD

Tags:

  • SUN HYDRAULICS
  • Material:PSDBCAN
  • Model:PSDB-CAN
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics PSDBCAN (Material Number: PSDBCAN) is a direct-acting, pressure reducing-relieving valve designed to reduce high primary pressure at inlet port 2 to a consistent, lower pressure at port 1, while providing full-flow relief from port 1 to tank port 3. This valve features a damped construction for stable operation and is suitable for use with high reduced pressures. It is particularly useful in accumulator circuits due to its design that minimizes secondary circuit leakage by eliminating pilot control flow. The valve's direct-acting nature ensures reliable operation even in contaminated systems and dead-headed conditions, offering superior dynamic response compared to pilot-operated models. The PSDBCAN model is not ideal for counterbalancing applications due to its characteristic transitional step between reducing and relieving modes, which equals 5% of the high end of the adjustment range. The maximum allowable pressure at port 3 is 3000 psi (210 bar), while the maximum operating pressure reaches up to 5000 psi (350 bar). The valve's design allows the effective setting to be increased by controlling the pressure at drain port 4, which should not exceed 5000 psi (350 bar). For installation, it requires a torque of 30 - 35 lbf ft (41 - 47 Nm) and features an internal hex size of 5/32 inch (4 mm) for adjustment screw. The valve's floating style construction helps prevent internal part binding due to excessive installation torque or machining variations. It has a capacity of handling flows up to 10 gpm (40 L/min) and weighs approximately .30 lb (.15 kg). For optimal performance, it\u2019s recommended that any reverse free flow required in the circuit should include an additional check valve.

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining port 4 makes the valve insensitive to pressure at port 3. These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
  • Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
  • Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
  • Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
  • Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

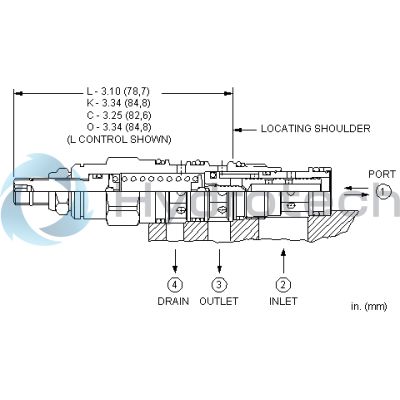

CavityT-21A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)2 in³/min.@1000 psi30 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-021-006

Show FAQ

Additional Resources



Notes:
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
