SUN HYDRAULICS
PRJRCBN

$568.60 USD

Tags:

SUN HYDRAULICS
Material:PRJRCBN
Model:PRJR-CBN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics PRJRCBN (PRJRCBN) is a direct-acting pressure reducing valve designed to lower a high primary pressure at inlet port 2 to a stable, reduced pressure at port 1. This valve is engineered with a damped construction, ensuring stable operation even under high reduced pressure conditions. It is important to note that this model lacks relieving capability, making it unsuitable for deadheaded applications. In scenarios where the reduced pressure side of the circuit experiences minimal leakage, users may observe a significant rise in pressure. The PRJRCBN serves as an effective replacement for an LPC valve when a normally open, restrictive compensating element with higher pressure drop across an orifice is needed. However, if reverse free flow from reduced pressure port 1 to inlet port 2 is required in the circuit, it is advisable to incorporate an additional check valve as the main spool may close under such conditions. This valve is tested for optimal performance with inlet pressures up to 5000 psi (350 bar), making it suitable for accumulator circuits due to its absence of pilot control flow and resultant reduction in secondary circuit leakage. The direct-operated design offers superior dynamic response compared to pilot-operated models. Pressure at port 3 adds directly to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). Leakage from port 3 varies with pressure differential and oil viscosity, specified under technical data provided by Sun Hydraulics. The PRJRCBN features Sun's floating style construction, minimizing potential binding of internal parts due to excessive installation torque or machining variations in cavity/cartridge configurations. With a capacity of 80 gpm (320 L/min), this model provides reliable performance across various applications requiring precise pressure regulation.

Description

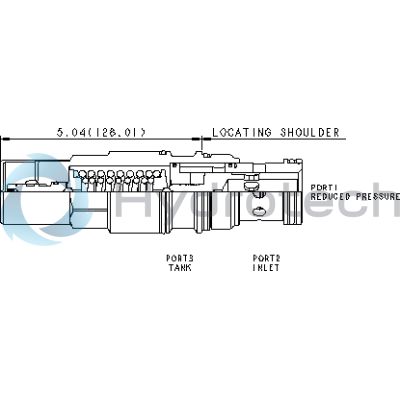

Direct-acting, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1. These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

Note: This valve has no relieving capability. It should not be used in a dead-headed application. If the reduced pressure side of the circuit has very low leakage the pressure may rise significantly. The pressure rise will vary from valve to valve.
This type of valve, PR*R, is a good replacement for an LP*C as a normally open, restrictive compensating element if a higher pressure drop across an orifice is needed.
Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-19A
Series	4
Capacity	80 gpm320 L/min.
Factory Pressure Settings Established at	2 in³/min.30 cc/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)	5 in³/min.80 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	3.10 lb1,40 kg
Seal kit - Cartridge	Viton: 990-019-006

Show FAQ

I need a reducer on B. Can I connect the drain to A?	Yes. If you look in the sandwich section you will see that we offer many such packages. When you are pressurizing B, A is connected to tank, allowing the reducer to do its job. When you reverse, the drain or tank port of the reducer is pressurized by A. This increases the setting of the reducer and helps keep the reducer open in the reverse flow direction.
What do you mean by maximum differential?	Our reducing valves are outside-in valves; the supply pressure on the outside of the working parts is higher than the inside. At some pressure differential, the outside (sleeve) will close in on the piston and cause the valve to stick. A D range is adjustable from 25 to 800 psi with a maximum differential of 2000 psi. This means you could set the valve at 600 psi and expect it to work correctly with a supply pressure of 2600 psi. The valve may work at higher differentials, but we do not recommend it. The W and C ranges are tested over their entire range with an inlet pressure of 5000 psi. All direct-acting valves are tested with an inlet pressure of 5000 psi.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
Can I back flow through a reducing valve from port 1 to port 2?	Yes. A reducing or reducing/relieving valve is normally open. If the pressure in the secondary circuit is less than the setting, it will be open.2 caveats: (1) If the valve is in the reducing mode and you suddenly reverse the flow, the valve will not have time to open and will shift into relieving mode or (2) If the back flow generates a pressure drop through the valve that exceeds the setting, the valve will shift into the relieving mode.When in doubt, use a reverse flow check.
