The Sun Hydraulics PRJBLAN (Material Number: PRJBLAN) is a direct-acting, pressure-reducing and relieving valve designed to manage high primary pressures at inlet port 2, reducing them to a consistent lower pressure at port 1 while providing full-flow relief from port 1 to tank port 3. This valve features a damped construction for stable operation, allowing it to handle high reduced pressures efficiently. Pressure at port 3 adds directly to the valve setting in a 1:1 ratio, with a maximum limit of 3000 psi (210 bar). The leakage rate is specified for conditions with supply pressure at 2000 psi (140 bar) and the valve set at mid-range; this leakage varies directly with pressure differential and inversely with viscosity. The PRJBLAN model is interchangeable with other three-port pressure reducing and relieving cartridges of the same frame size. For optimal performance, it is sometimes recommended to use a full capacity return line on port 3 when using reducing/relieving cartridges. Reverse flow from reduced pressure port 1 to inlet port 2 may close the main spool; adding a separate check valve can allow reverse flow in such circuits. The valve's direct-acting design offers reliable operation in contaminated systems and superior dynamic response compared to pilot-operated models. It includes Sun's floating style construction to reduce internal binding risks due to excessive torque or machining variations. The valve operates within a maximum operating pressure of 5000 psi (350 bar) and features an adjustment range that increases setting by turning clockwise up to five turns, with specific hex sizes for installation and adjustments.

Description

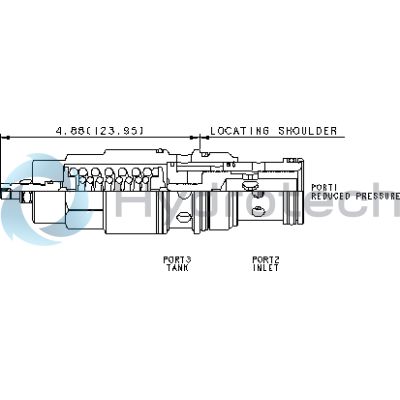

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 3000 psi (210 bar).
Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-19A
Series	4
Capacity	80 gpm320 L/min.
Factory Pressure Settings Established at	blocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)	5 in³/min.80 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	3.10 lb1,40 kg
Seal kit - Cartridge	Viton: 990-019-006

Show FAQ

What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
I need a reducer on B. Can I connect the drain to A?	Yes. If you look in the sandwich section you will see that we offer many such packages. When you are pressurizing B, A is connected to tank, allowing the reducer to do its job. When you reverse, the drain or tank port of the reducer is pressurized by A. This increases the setting of the reducer and helps keep the reducer open in the reverse flow direction.
What do you mean by maximum differential?	Our reducing valves are outside-in valves; the supply pressure on the outside of the working parts is higher than the inside. At some pressure differential, the outside (sleeve) will close in on the piston and cause the valve to stick. A D range is adjustable from 25 to 800 psi with a maximum differential of 2000 psi. This means you could set the valve at 600 psi and expect it to work correctly with a supply pressure of 2600 psi. The valve may work at higher differentials, but we do not recommend it. The W and C ranges are tested over their entire range with an inlet pressure of 5000 psi. All direct-acting valves are tested with an inlet pressure of 5000 psi.
Will your reducing/relieving valve relieve my pump to tank?	No. A reducing/relieving valve throttles a supply of oil to maintain a set pressure in a secondary circuit. The valve is open until the secondary or downstream pressure rises to the setting of the valve at which time it starts to close to limit the pressure. If the secondary or downstream pressure is caused to go above the setting, the valve shifts into relieving mode and throttles the secondary circuit back to tank to prevent over-pressure. At no time can the valve connect the supply to tank.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Can I back flow through a reducing valve from port 1 to port 2?	Yes. A reducing or reducing/relieving valve is normally open. If the pressure in the secondary circuit is less than the setting, it will be open.2 caveats: (1) If the valve is in the reducing mode and you suddenly reverse the flow, the valve will not have time to open and will shift into relieving mode or (2) If the back flow generates a pressure drop through the valve that exceeds the setting, the valve will shift into the relieving mode.When in doubt, use a reverse flow check.
