SUN HYDRAULICS
PPX

$193.10 USD

Tags:

SUN HYDRAULICS
Material:PPX
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

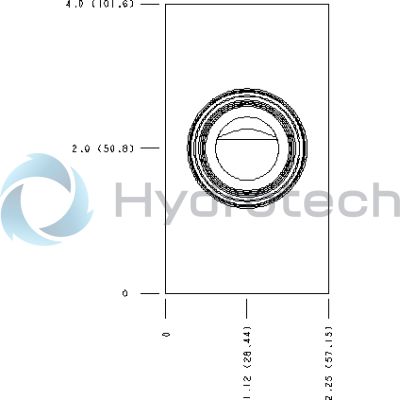

The Sun Hydraulics PPX (PPX) is a line mount manifold designed to interface with hydraulic systems. This component features a ninety-degree body type, allowing for flexible installation in various configurations. The manifold includes two mounting holes with a diameter of 0.42 inches (10.7 mm), accommodating through-hole installation for secure attachment. It is constructed with one open cavity and utilizes the T-63A cavity specification, providing compatibility with specific hydraulic cartridges. This model is equipped with a 1 BSPP port size, which is standard for many hydraulic applications, ensuring easy integration into existing systems. The PPX manifold's construction from 6061-T651 aluminum offers excellent corrosion resistance and durability while maintaining cost-effectiveness and availability. The design of the PPX emphasizes functionality without anodizing, as the natural properties of 6061-T651 aluminum provide sufficient corrosion resistance and avoid potential issues such as increased fatigue failure or problematic torque during maintenance. This decision supports the longevity and reliability of the manifold under typical operating conditions, limited to pressures not exceeding 3000 psi (210 bar) due to material constraints. Overall, the Sun Hydraulics PPX manifold serves as a robust solution for hydraulic circuit design, offering versatility in mounting and configuration while ensuring durability through its high-quality aluminum construction.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Ninety degreeNinety degree
Mounting Hole Diameter	.42 in.10,7 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-63A
Port Size	1" BSPP1" BSPP

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
