SUN HYDRAULICS
PPJBWDN

$562.90 USD

Tags:

SUN HYDRAULICS
Material:PPJBWDN
Model:PPJB-WDN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

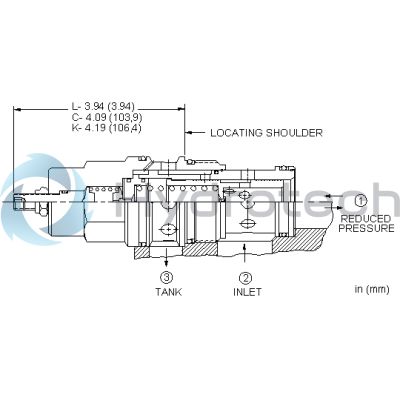

The Sun Hydraulics PPJBWDN (PPJBWDN) is a pilot-operated, pressure reducing-relieving valve designed to efficiently manage high primary pressure at the inlet port 2, reducing it to a constant lower pressure at port 1, while offering a full-flow relief function from port 1 to tank port 3. It is crucial that the maximum pressure at port 3 does not exceed 3000 psi (210 bar), as it directly influences the valve setting in a 1:1 ratio. While these valves are not as fast-acting as direct-acting valves, they provide superior stability with low hysteresis and exceptionally flat pressure-flow characteristics. The recommended maximum inlet pressure is contingent on the adjustment range, with ranges D, E, N, and Q tested up to a 2000 psi (140 bar) differential and ranges A, B, H up to 3000 psi (210 bar). For ranges C and W, an inlet pressure of up to 5000 psi (350 bar) is accommodated. The PPJBWDN model features Sun's floating style construction which minimizes internal part binding due to installation torque or machining variations. It supports full reverse flow from reduced pressure port 1 to inlet port 2; however, this may close the main spool unless an additional check valve is used. The valve's design allows for interchangeable use across three-port reducing cartridges within the same frame size. Installation requires consideration of a full capacity return line for optimal performance with reducing-relieving cartridges. Specifications include a cavity T-19A series with an impressive capacity of up to 80 gpm (320 L/min), factory settings established at blocked control ports, maximum operating pressures of up to 5000 psi (350 bar), and control pilot flow between 15 - 20 in\u00b3/min (0.25 - 0.33 L/min). The model weighs approximately 3.10 lb (1.40 kg) and uses Viton seals compatible with various hydraulic fluids and temperature recommendations provided by Sun Hydraulics.

Description

Pilot-operated, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3).

Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 3000 psi (210 bar).
Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-19A
Series	4
Capacity	80 gpm320 L/min.
Factory Pressure Settings Established at	blocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	15 - 20 in³/min.0,25 - 0,33 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	3.10 lb1,40 kg
Seal kit - Cartridge	Viton: 990-019-006

Show FAQ

Can I back flow through a reducing valve from port 1 to port 2?	Yes. A reducing or reducing/relieving valve is normally open. If the pressure in the secondary circuit is less than the setting, it will be open.2 caveats: (1) If the valve is in the reducing mode and you suddenly reverse the flow, the valve will not have time to open and will shift into relieving mode or (2) If the back flow generates a pressure drop through the valve that exceeds the setting, the valve will shift into the relieving mode.When in doubt, use a reverse flow check.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
I need a reducer on B. Can I connect the drain to A?	Yes. If you look in the sandwich section you will see that we offer many such packages. When you are pressurizing B, A is connected to tank, allowing the reducer to do its job. When you reverse, the drain or tank port of the reducer is pressurized by A. This increases the setting of the reducer and helps keep the reducer open in the reverse flow direction.
What do you mean by maximum differential?	Our reducing valves are outside-in valves; the supply pressure on the outside of the working parts is higher than the inside. At some pressure differential, the outside (sleeve) will close in on the piston and cause the valve to stick. A D range is adjustable from 25 to 800 psi with a maximum differential of 2000 psi. This means you could set the valve at 600 psi and expect it to work correctly with a supply pressure of 2600 psi. The valve may work at higher differentials, but we do not recommend it. The W and C ranges are tested over their entire range with an inlet pressure of 5000 psi. All direct-acting valves are tested with an inlet pressure of 5000 psi.
Will your reducing/relieving valve relieve my pump to tank?	No. A reducing/relieving valve throttles a supply of oil to maintain a set pressure in a secondary circuit. The valve is open until the secondary or downstream pressure rises to the setting of the valve at which time it starts to close to limit the pressure. If the secondary or downstream pressure is caused to go above the setting, the valve shifts into relieving mode and throttles the secondary circuit back to tank to prevent over-pressure. At no time can the valve connect the supply to tank.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.

Additional Resources

Notes:

Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
