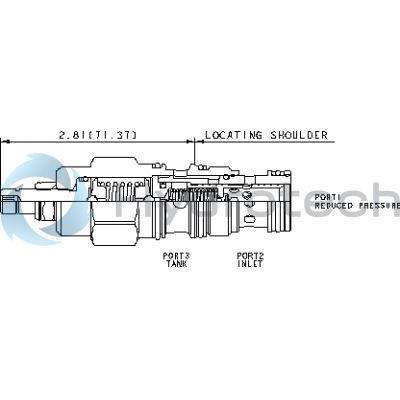

RED-REL CART
PPFBLEN


$127.30 USD

Tags:

  • SUN HYDRAULICS
  • Material:PPFBLEN
  • Model:PPFB-LEN
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics PPFBLEN (PPFBLEN) is a pilot-operated pressure reducing/relieving valve designed to maintain a consistent reduced pressure at port 1 from a higher primary pressure at inlet port 2, while also providing a full-flow relief function from port 1 to tank port 3. The valve exhibits exceptional stability and low hysteresis due to its pilot-operated design, although it is not as fast-acting as direct-acting valves. It features a maximum operating pressure of 5000 psi (350 bar) and supports a control pilot flow of 10 to 15 in\u00b3/min (0.16 to 0.25 L/min). The valve's adjustment range varies depending on the spring range, with ranges D, E, N, and Q tested with up to a 2000 psi (140 bar) differential, while ranges A, B, and H can handle up to a 3000 psi (210 bar) differential. Range W is tested with an inlet pressure of up to 5000 psi (350 bar). The PPFBLEN model incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or machining variations in the cavity/cartridge interface. It also allows for reverse flow from reduced pressure port 1 back to inlet port 2; however, this may cause the main spool to close unless a separate check valve is added for reverse free flow requirements. Cartridges configured with EPDM seals are suitable for systems using phosphate ester fluids but should not be exposed to petroleum-based fluids as this will damage the seals. The valve is physically interchangeable within its series frame size and requires specific installation torques for optimal performance: Valve Installation Torque is between 45 and 50 lbf\u00b7ft (61 and 68 Nm), Adjustment Screw Internal Hex Size is ^5\u204432 inch (4 mm), Locknut Hex Size is ^9\u204416 inch (15 mm), and Locknut Torque ranges from 80 to 90 lbf\u00b7in (9 to 10 Nm).

Pilot-operated, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3).

  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 3000 psi (210 bar).
  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-2A
Series2
Capacity20 gpm80 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow10 - 15 in³/min.0,16 - 0,25 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 1/8 in.28,6 mm
Valve Installation Torque45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.60 lb0,30 kg
Seal kit - CartridgeViton: 990-202-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
